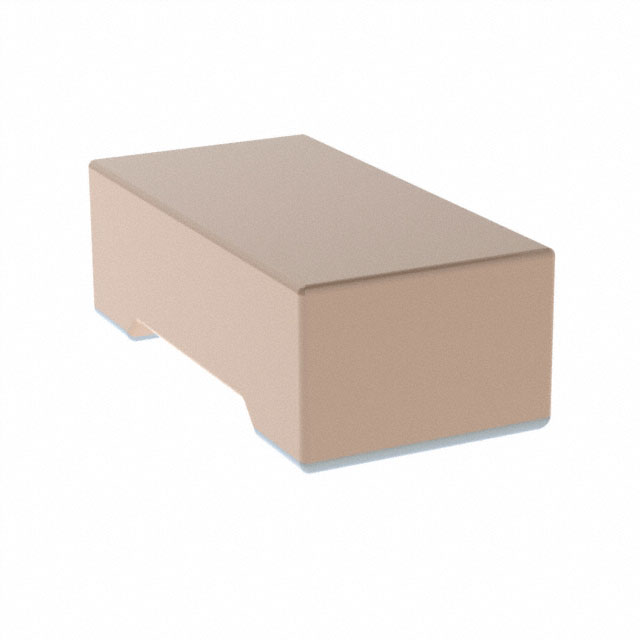

TLRZ1JTTD
ActiveKOA Speer Electronics, Inc.
RES 0 OHM JUMPER 0603
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLRZ1JTTD
ActiveKOA Speer Electronics, Inc.
RES 0 OHM JUMPER 0603
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLRZ1JTTD |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | 0603 (1608 Metric) |
| Ratings | AEC-Q200 |
| Resistance | 0 Ohms |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Tolerance | Jumper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.27 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 5000 | $ 0.10 | ||
| 10000 | $ 0.09 | |||
| 15000 | $ 0.09 | |||
| 25000 | $ 0.08 | |||
| 35000 | $ 0.08 | |||
| 50000 | $ 0.08 | |||
| 125000 | $ 0.07 | |||
Description
General part information
TLRZ1J Series
0 Ohms Jumper Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Current Sense Metal Element
