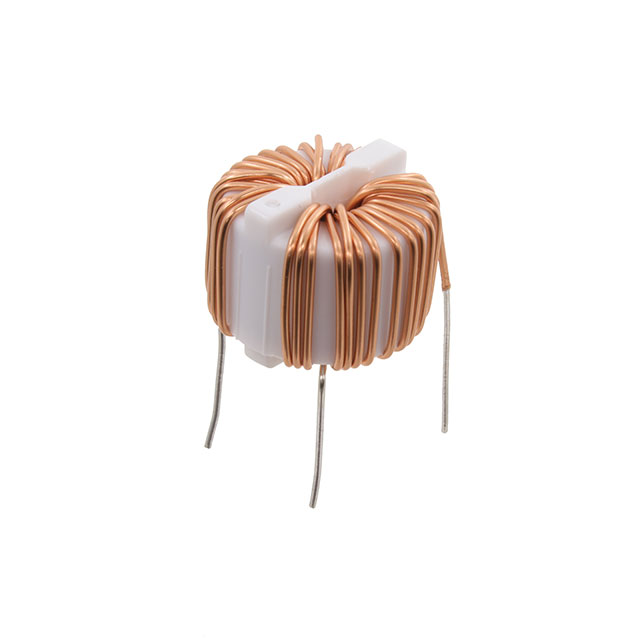

SC-05-103 - SC-05-103

SC-05-103

Active
KEMET

COMMON MODE FILTER, 1MH, 5A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_LF0005_SC.pdfSC-05-103 Spec+1
SC-05-103 - SC-05-103

SC-05-103

Active
KEMET

COMMON MODE FILTER, 1MH, 5A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsKEM_LF0005_SC.pdfSC-05-103 Spec+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSC-05-103
Current Rating (Max) [Max]5 A
DC Resistance (DCR) (Max) [Max]50 mOhm
Filter TypePower Line
Height (Max) [Max]0.728 in
Height (Max) [Max]18.5 mm
Inductance @ Frequency1 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Package / CaseNo Base, Horizontal
Package / Case4 Lead
Size / Dimension [diameter]25 mm
Size / Dimension [diameter]0.984 "
Voltage Rating - AC250 V
Voltage Rating - DC250 V

SC-05 Series

PartNumber of LinesVoltage Rating - DCCurrent Rating (Max) [Max]Mounting TypeInductance @ FrequencyPackage / CasePackage / CaseHeight (Max) [Max]Height (Max) [Max]Voltage Rating - ACOperating Temperature [Min]Operating Temperature [Max]Filter TypeSize / Dimension [diameter]Size / Dimension [diameter]DC Resistance (DCR) (Max) [Max]Size / Dimension [y]Size / Dimension [y]DC Resistance (DCR) (Max)Height (Max) [Max] [z]Height (Max) [Max] [z]Height (Max)Size / Dimension [x]Size / Dimension [x]Height (Max) [Max]
KEMET
SC-05-492JH
2
250 V
5 A
Through Hole
4.9 mH
Horizontal
4 Lead
0.709 in
18 mm
250 V
-40 °C
120 °C
Power Line
KEMET
SC-05-812JH
2
250 V
5 A
Through Hole
8.1 mH
Horizontal
4 Lead
0.709 in
18 mm
250 V
-40 °C
120 °C
Power Line
KEMET
SC-05-E06H
2
250 V
5 A
Through Hole
600 µH
Horizontal
No Base
4 Lead
0.512 in
13 mm
250 V
-40 °C
120 °C
Power Line
25 mm
0.984 "
17.5 mOhm
KEMET
SC-05-1503
2
250 V
5 A
Through Hole
10.5 mH
4 PC Pin
No Base
Vertical
1.339 in
34 mm
250 V
-40 °C
105 ░C
Power Line
34 mm
1.339 "
100 mOhm
KEMET
SC-05-D030
2
250 V
5 A
Through Hole
30 µH
4 PC Pin
No Base
Vertical
0.984 in
25 mm
250 V
-40 °C
105 ░C
Power Line
25 mm
0.984 "
0.748 in
19 mm
20 mOhm
KEMET
SC-05-503
2
250 V
4 A
Through Hole
5 mH
Horizontal
No Base
4 Lead
250 V
-40 °C
105 ░C
Power Line
34 mm
1.339 "
80 mOhm
0.906 in
23 mm
KEMET
SC-05-1100
2
250 V
5 A
Through Hole
11 mH
4 PC Pin
No Base
Vertical
1.339 in
34 mm
250 V
-40 °C
120 °C
Power Line
34 mm
1.339 "
55 mOhm
KEMET
SC-05-103
2
250 V
5 A
Through Hole
1 mH
Horizontal
No Base
4 Lead
0.728 in
18.5 mm
250 V
-40 °C
105 ░C
Power Line
25 mm
0.984 "
50 mOhm
KEMET
SC-05-80J
2
250 V
4 A
Through Hole
8 mH
100 kHz
Vertical
4 Lead
1.299 in
250 V
-40 °C
120 °C
Power Line
90 mOhm
0.906 in
23 mm
33 mm
34 mm
1.339 "
KEMET
SC-05-300
2
250 V
5 A
Through Hole
3 mH
4 PC Pin
No Base
Vertical
1.26 in
250 V
-40 °C
105 ░C
Power Line
32 mm
1.26 "
55 mOhm
32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.96
10$ 3.31
25$ 3.02
50$ 2.59
100$ 2.37
300$ 2.30
500$ 2.23
1000$ 2.09
2500$ 2.01
NewarkEach 1$ 4.11
10$ 3.43
25$ 3.11
50$ 2.79
100$ 2.46
500$ 2.24
1000$ 2.16
2500$ 2.09

Description

General part information

SC-05 Series

1 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 5A DCR 50mOhm

Documents

Technical documentation and resources

KEM_LF0005_SC.pdf

Datasheet

SC-05-103 Spec

Datasheet

Datasheet

Datasheet
