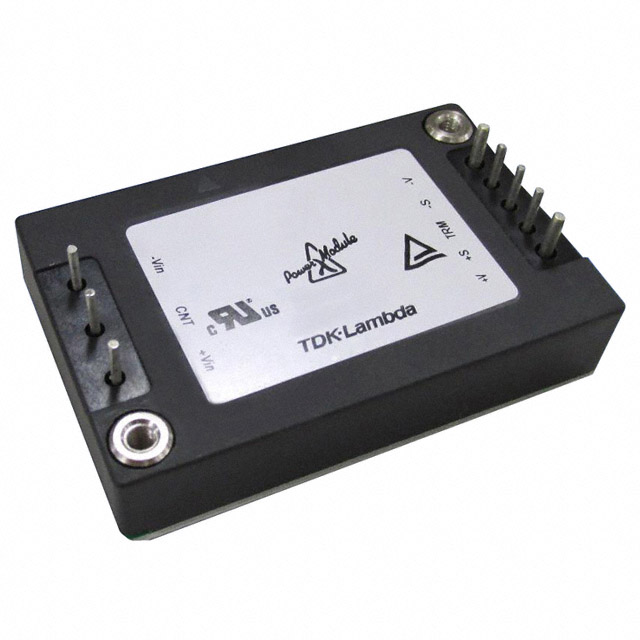

CN50A110-24 - MFG_CN-A110_Series

CN50A110-24

Active
TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, QUARTER BRICK, 50.4 W, 1 OUTPUT, 24 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSafety Data Sheet ENTechnical Data Sheet EN+3
CN50A110-24 - MFG_CN-A110_Series

CN50A110-24

Active
TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, QUARTER BRICK, 50.4 W, 1 OUTPUT, 24 V

Deep-Dive with AI

DocumentsSafety Data Sheet ENTechnical Data Sheet EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationCN50A110-24
ApplicationsITE (Commercial)
Current - Output (Max) [Max]2.1 A
Efficiency86 %
FeaturesRemote On/Off
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [Max]100 °C
Operating Temperature [Min]-40 °C
Package / Case1/4 Brick, 8-DIP Module
Power (Watts)50 W
Size / Dimension [x]57.9 mm
Size / Dimension [x]2.28 in
Size / Dimension [y]1.45 in
Size / Dimension [y]36.8 mm
Size / Dimension [z]12.7 mm
Size / Dimension [z]0.5 in
TypeIsolated Module
Voltage - Input (Max) [Max]160 V
Voltage - Input (Min) [Min]60 V
Voltage - Isolation3000 V
Voltage - Output 124 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 144.84
10$ 135.15
25$ 127.39
50$ 118.53
NewarkEach 1$ 144.84
10$ 135.15
25$ 127.39
50$ 118.53

Description

General part information

CN50A110 Series

Isolated Module DC DC Converter 1 Output 24V 2.1A 60V - 160V Input
