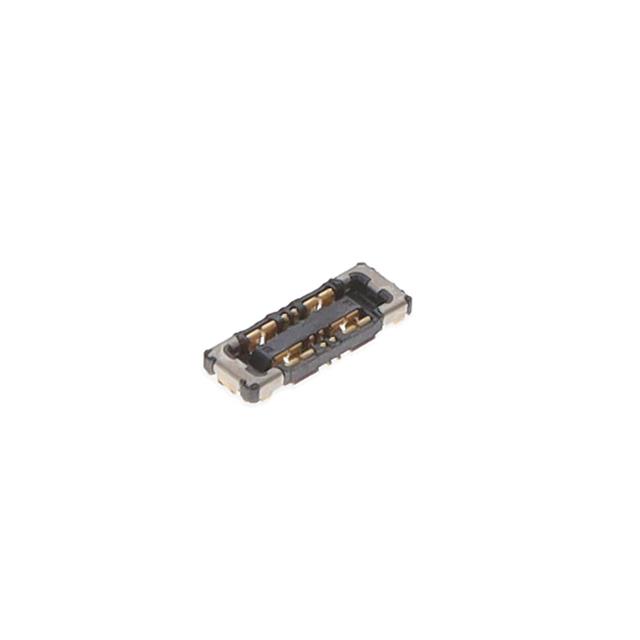

247129004101829+
ActiveKyocera AVX
7129 SERIES, BOARD TO BOARD, 0.3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
247129004101829+
ActiveKyocera AVX
7129 SERIES, BOARD TO BOARD, 0.3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 247129004101829+ |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Features | Solder Retention |
| Height Above Board | 0.026 in |
| Height Above Board | 0.65 mm |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.69 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.07 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.83 | |||
| 1000 | $ 0.78 | |||
| 2500 | $ 0.71 | |||
| Digi-Reel® | 1 | $ 1.69 | ||
| 10 | $ 1.29 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.07 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.83 | |||
| 1000 | $ 0.78 | |||
| 2500 | $ 0.71 | |||
| Tape & Reel (TR) | 15000 | $ 0.60 | ||
Description
General part information
247129 Series
8 (4 + 4 Power) Position Connector Receptacle, Outer Shroud Contacts Surface Mount
