5P49V5933B000LTGI8

Active

Renesas Electronics Corporation

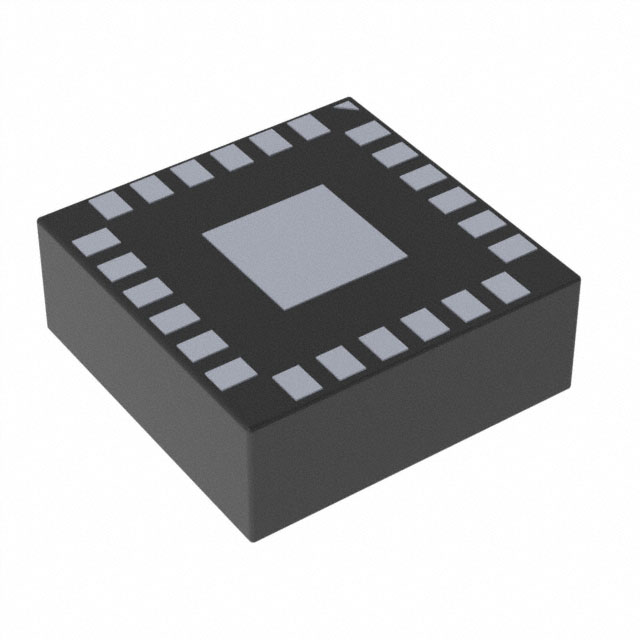

IC CLOCK GENERATOR 24LGA

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC CLOCK GENERATOR 24LGA

Technical Specifications

Parameters and characteristics for this part

Specification	5P49V5933B000LTGI8

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Divider/Multiplier	Yes/No
Frequency - Max [Max]	350 MHz
Input	Crystal
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVDS, LVPECL, LVCMOS
Package / Case	24-LFLGA Exposed Pad
PLL	True
Ratio - Input:Output [custom]	2:2
Supplier Device Package	24-LGA (4x4)
Type	Clock Generator
Voltage - Supply [Max]	3.135 V, 3.465 V
Voltage - Supply [Min]	1.71 V, 2.375 V

Part	Type	PLL	Ratio - Input:Output [custom]	Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Number of Circuits	Frequency - Max [Max]	Mounting Type	Input	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Divider/Multiplier
Renesas Electronics Corporation 5P49V5933B000LTGI8	Clock Generator		2:2	LVCMOS LVDS LVPECL	3.135 V 3.465 V	1.71 V 2.375 V	24-LFLGA Exposed Pad	1	350 MHz	Surface Mount	Crystal			24-LGA (4x4)	85 °C	-40 °C	Yes/No

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 4.82

General part information

Clock Generator IC 350MHz 1 24-LFLGA Exposed Pad
