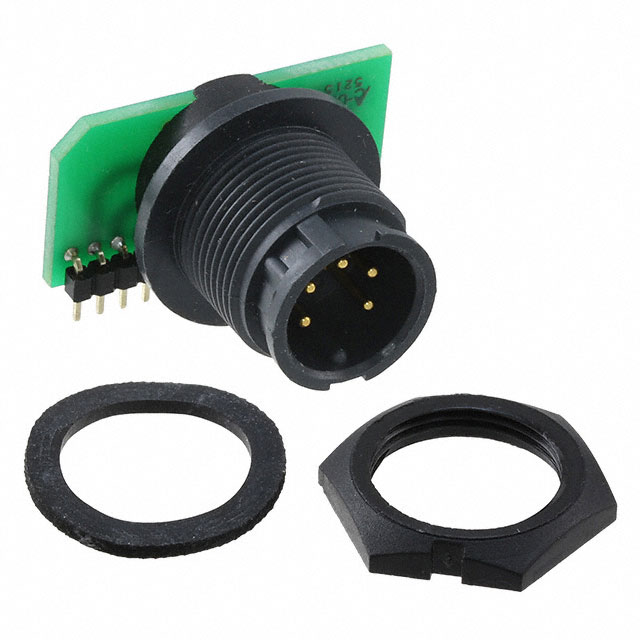

7251-5PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7251-5PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Circuit Board, Solder

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Contact Finish - Mating	Backshell Material, Plating	Termination	Connector Type	Current Rating (Amps)	Insert Material	Orientation	Material Flammability Rating	Ingress Protection	Mounting Type	Color	Fastening Type	Applications	Shielding	Primary Material
Conxall/Switchcraft 7251-5PG-300	Copper Alloy	85 °C	-40 °C	Bulkhead - Front Side Nut	Gold	Nylon Polyamide (PA)	Circuit Board Solder	Male Pins Receptacle	Varies by Wire Gauge	Thermoplastic	Keyed	UL94 V-0	Weathertight	Panel Mount Right Angle Through Hole	Black	Bayonet Lock	Automotive Communication Systems Instrumentation	Unshielded	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder

Technical documentation and resources

No documents available
