05S432-K00S3

Active

Rosenberger

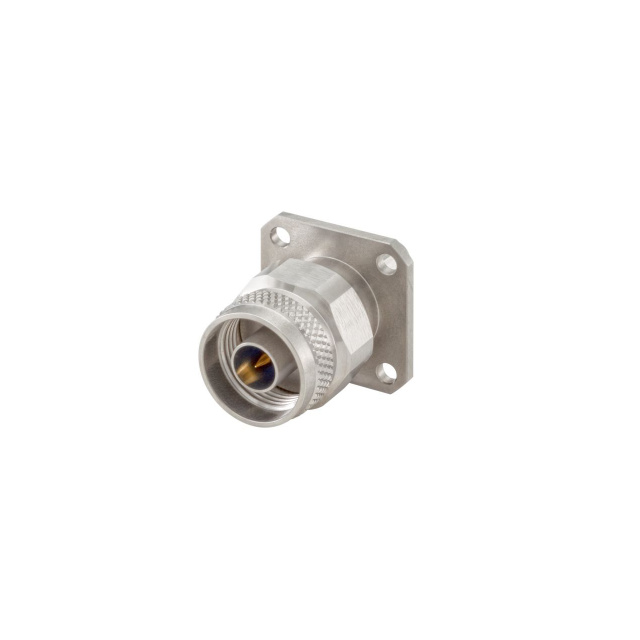

PRECISION N TYPE ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	05S432-K00S3

Adapter Series	RJC-N to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polyphenylene Ether (PPE), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.42 dB
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Mounting Feature	Insertion Loss	Adapter Series	Convert From (Adapter End)	Center Contact Plating	Convert To (Adapter End)	Conversion Type	Impedance	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Body Material	Style	Adapter Type	Mating Cycles	Center Contact Material
Rosenberger 05S432-K00S3	Flange	0.42 dB	RJC-N to SMA	N Plug Male Pin	Gold	Female Socket SMA Jack	Between Series	50 Ohms	18 GHz	85 °C	-40 °C	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	Stainless Steel	Straight	Plug to Jack	500	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 316.78

General part information

Adapter Coaxial Connector N Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
