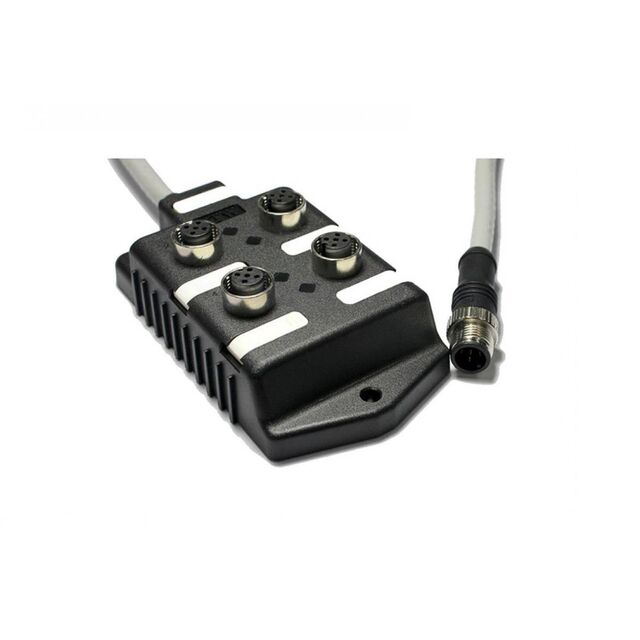

S-555500-FFFF00-SB01

Active

Amphenol LTW

NMEA 2000, DISTRIBUTION BOX, METAL, 4A, 05 PINS, SCREW THREAD, LENGTH 1000MM, IP68 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

NMEA 2000, DISTRIBUTION BOX, METAL, 4A, 05 PINS, SCREW THREAD, LENGTH 1000MM, IP68 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	S-555500-FFFF00-SB01

Accessory Type	Actuator Box
Color	Black
Features	Dust Tight, Waterproof
Features	4 Cable Entries
For Use With/Related Products	Circular Connectors
Material	Polycarbonate (PC), Polybutylene Terephthalate (PBT)

Part	Number of Positions (Convert From)	Housing Material	Housing Material	Convert From (Adapter End)	Connector Style	Number of Positions (Convert To)	Number of Positions (Convert To)	Mounting Type	Convert To (Adapter End)	Features	Housing Color	Orientation (Convert To)	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Orientation (Convert From)	For Use With/Related Products	Material	Accessory Type	Color	Features
Amphenol LTW S-555500-FFFM00-S001	5	Polyurethane	PUR	Male Pins	Distributor T-Shaped	5	3	Free Hanging (In-Line)	Female Sockets (3)	Coupling Nut	Black	Keyed	IP68 - Dust Tight Waterproof	50 °C	-20 C	Keyed
Amphenol LTW S-555500-FFFF00-SB01										Dust Tight Waterproof							Circular Connectors	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	Actuator Box	Black	4 Cable Entries
Amphenol LTW S-555500-FFFF00-SB10										Dust Tight Waterproof							Circular Connectors	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	Actuator Box	Black	4 Cable Entries
Amphenol LTW S-555500-FFFF00-SB05										Dust Tight Waterproof							Circular Connectors	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	Actuator Box	Black	4 Cable Entries

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NMEA 2000, DISTRIBUTION BOX, METAL, 4A, 05 PINS, SCREW THREAD, LENGTH 1000MM, IP68 ROHS COMPLIANT: YES

Technical documentation and resources

No documents available
