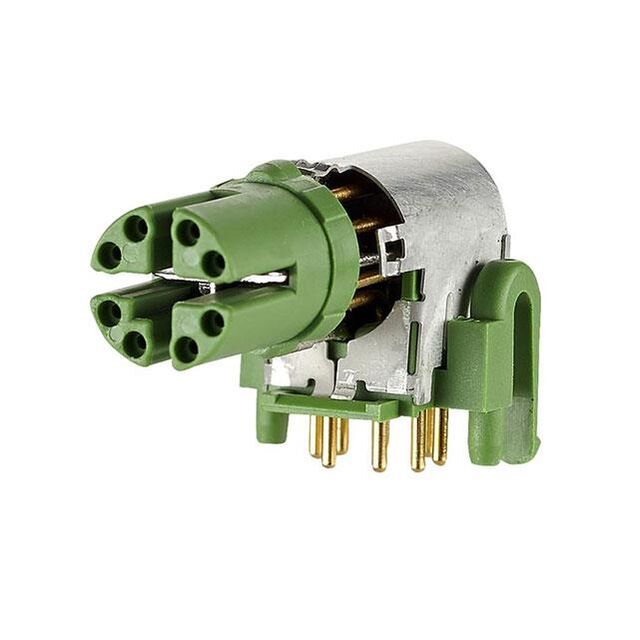

MMTA70A315

Active

METZ CONNECT USA Inc.

CONN FMALE INSERT 8P GOLD SOLDER

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CONN FMALE INSERT 8P GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	MMTA70A315

Applications	Railway
Color	Silver, Green
Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	0.5 A
Features	Requires Shell, Insert Only, Board Lock, Board Guide
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	X
Shell Size - Insert	M12-8
Termination	Solder
Voltage Rating	50 VAC, 60 VDC

Part	Voltage Rating	Features	Applications	Orientation	Connector Type	Number of Positions	Color	Contact Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Shell Size - Insert
METZ CONNECT USA Inc. MMTA70A315	50 VAC 60 VDC	Board Guide Board Lock Insert Only Requires Shell	Railway	X	Female Sockets Insert	8	Green Silver	Copper Zinc	Solder	85 °C	-40 °C	Gold	Through Hole Right Angle	0.5 A	M12-8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 36.54

General part information

8 Position Circular Connector Insert, Female Sockets Solder
