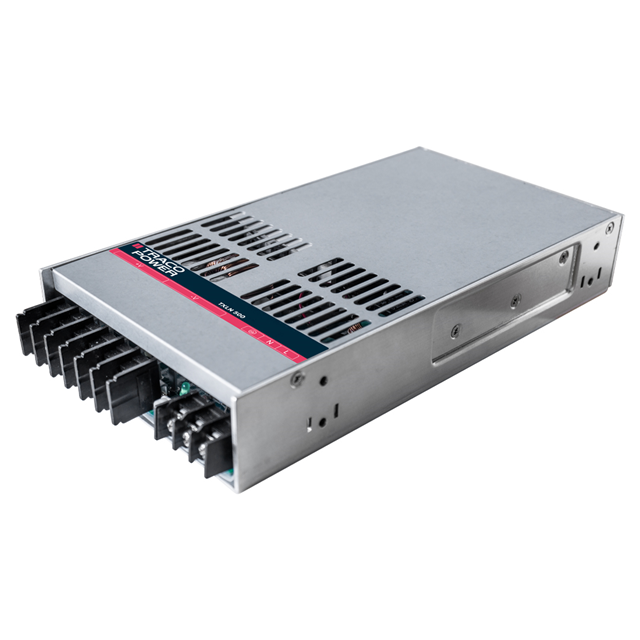

TXLN 500-112

Active

Traco Power

AC/DC CONVERTER 12V 500W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 12V 500W

Technical Specifications

Parameters and characteristics for this part

Specification	TXLN 500-112

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	41.7 A
Efficiency	88 %
Features	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	500 W
Size / Dimension [x]	9.06 in
Size / Dimension [x]	230 mm
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	1.6 "
Size / Dimension [z]	40.6 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC, 375 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Voltage - Output 1	Standard Number	Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Current - Output 1	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Mounting Type	Applications	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
Traco Power TXLN 500-148	48 V	62368-1	Enclosed	504 W	1.6 "	40.6 mm	5 "	127 mm	9.06 in	230 mm	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	10.5 A	3000 V	264 VAC 375 VDC	85 VAC 120 VDC	1	Chassis Mount	ITE (Commercial)	91 %	70 °C	-30 °C	CB CE cURus
Traco Power TXLN 500-124	24 V	62368-1	Enclosed	504 W	1.6 "	40.6 mm	5 "	127 mm	9.06 in	230 mm	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	21 A	3000 V	264 VAC 375 VDC	85 VAC 120 VDC	1	Chassis Mount	ITE (Commercial)	89 %	70 °C	-30 °C	CB CE cURus
Traco Power TXLN 500-112	12 V	62368-1	Enclosed	500 W	1.6 "	40.6 mm	5 "	127 mm	9.06 in	230 mm	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	41.7 A	3000 V	264 VAC 375 VDC	85 VAC 120 VDC	1	Chassis Mount	ITE (Commercial)	88 %	70 °C	-30 °C	CB CE cURus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 375 VDC Input
