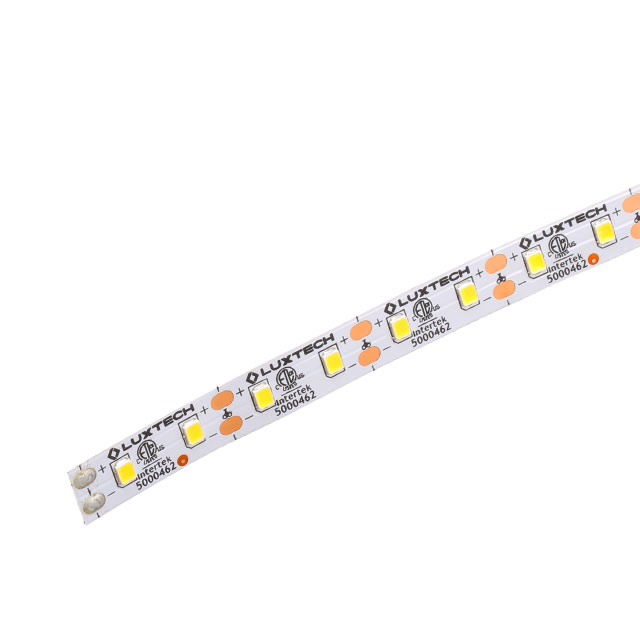

FX-CC-10-C-35K-80-5

Active

Luxtech, LLC

LED MOD WM WHT LNR STRP 3500K

Search across all available documentation for this part.

Active

Luxtech, LLC

LED MOD WM WHT LNR STRP 3500K

Technical Specifications

Parameters and characteristics for this part

Specification	FX-CC-10-C-35K-80-5

CCT (K)	3500 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	540 mA
Height [z]	2.99 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	132 lm/W
Luminous Flux @ Current/Temperature	2400 lm
Size / Dimension [x]	5000 mm
Size / Dimension [y]	10 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	35 V

Part	Color	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Voltage - Forward (Vf) (Typ)	Configuration	Luminous Flux @ Current/Temperature	Lens Type	Height [z]	Viewing Angle	Lumens/Watt @ Current - Test	Type	Current - Max [Max]	CRI (Color Rendering Index)
Luxtech, LLC FX-CC-10-C-35K-80-5	Warm White	5000 mm	10 mm	3500 K	35 V	Linear Light Strip	2400 lm	Flat	2.99 mm	120 °	132 lm/W	LED Module	540 mA	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1	$ 189.31

General part information

LED Lighting COBs Engines Modules LED Module - White, Warm Linear Light Strip
