M4638 SL005
ActiveALPHA WIRE

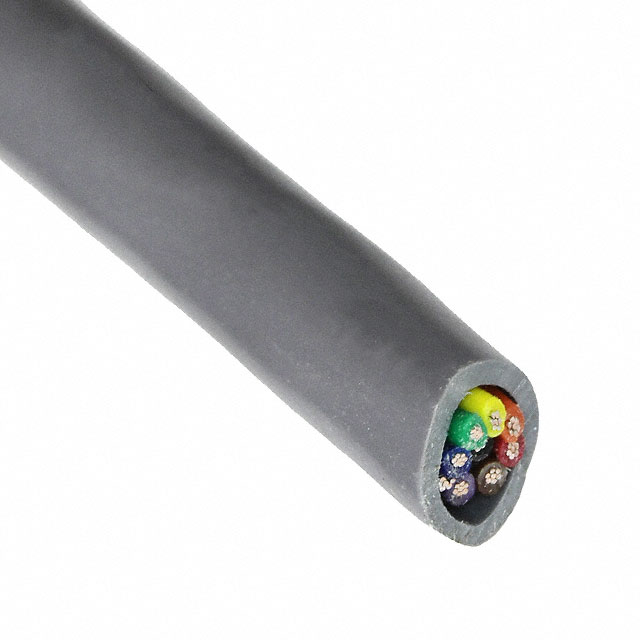

CABLE 8CON 22AWG SLATE SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
M4638 SL005
ActiveALPHA WIRE
CABLE 8CON 22AWG SLATE SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M4638 SL005 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.02 mm |
| Jacket (Insulation) Diameter [diameter] | 0.237 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 191.05 | |
| 3 | $ 177.00 | |||
| 5 | $ 173.13 | |||
Description
General part information
M4638 Series
8 Conductor Multi-Conductor Cable Slate 22 AWG Foil 100.0' (30.5m)
