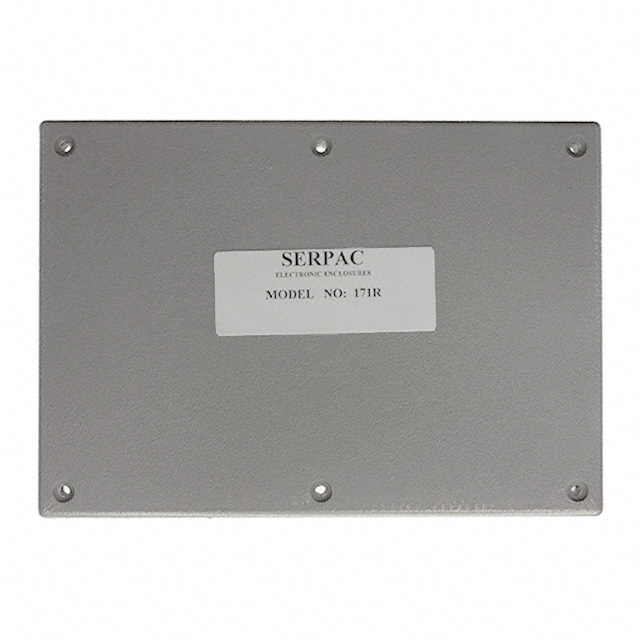

171R,GY

Active

Serpac

BOX ABS GRAY 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	171R,GY

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.4 lb
Weight	181.44 g

Part	Thickness	Thickness	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Material	Color	Area (L x W)	Area (L x W)	Design	Ratings	Height [z]	Height [z]	Container Type	Material Flammability Rating	Area (L x W) [custom]	Area (L x W) [custom]
Serpac 171R,AL	2.54 mm	0.1 in	Front Access PCB Supports	123.95 mm	174.75 mm	4.88 in	6.88 in	0.4 lb	181.44 g	Plastic ABS	Almond	33.6 in²	217 cm²	Hand Held Split Sides	IP40 NEMA 1	38.1 mm	1.5 in	Box	UL94 HB
Serpac 171R,BK	2.54 mm	0.1 in	Front Access PCB Supports	123.95 mm	174.75 mm	4.88 in	6.88 in	0.4 lb	181.44 g	Plastic ABS	Black	33.6 in²	217 cm²	Hand Held Split Sides	IP40 NEMA 1	38.1 mm	1.5 in	Box	UL94 HB
Serpac 171RI,GY	2.54 mm	0.1 in	Front Access PCB Supports	123.95 mm	174.75 mm	4.88 in	6.88 in	0.4 lb	181.44 g	Plastic ABS	Gray	33.6 in²	217 cm²	Hand Held Split Sides	IP40 NEMA 1	38.1 mm	1.5 in	Box	UL94 HB
Serpac 171R,GY	2.54 mm	0.1 in	Front Access PCB Supports	123.95 mm	174.75 mm	4.88 in	6.88 in	0.4 lb	181.44 g	Plastic ABS	Gray	33.6 in²	217 cm²	Hand Held Split Sides	IP40 NEMA 1	38.1 mm	1.5 in	Box	UL94 HB
Serpac 171RI,BK	2.54 mm	0.1 in	Front Access PCB Supports	123.95 mm	174.75 mm	4.88 in	6.88 in	0.4 lb	181.44 g	Plastic ABS	Black			Hand Held Split Sides	IP40 NEMA 1	38.1 mm	1.5 in	Box	UL94 HB	217 cm˛	33.6 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.29

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.500" (38.10mm)

Technical documentation and resources

No documents available
