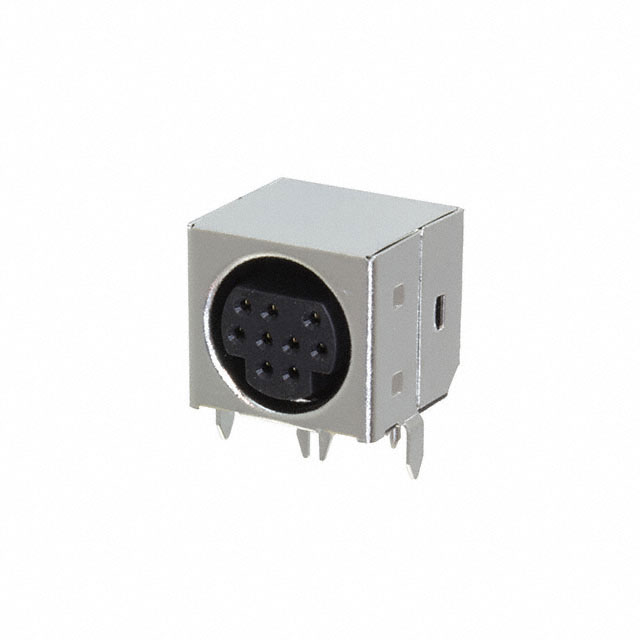

MDJ-009-FS

Active

Adam Tech

CONN JACK FMALE MINI DIN 9P SLDR

Search across all available documentation for this part.

Active

Adam Tech

CONN JACK FMALE MINI DIN 9P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MDJ-009-FS

Applications	Video, Audio
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Tin
Shell Material	Copper Alloy
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Fastening Type	Shell Finish	Shielding	Contact Finish - Mating	Applications	Orientation	Voltage Rating	Primary Material	Shell Material	Number of Positions	Color	Material Flammability Rating	Features	Insert Material	Shell Size - Insert	Connector Type	Contact Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Adam Tech MDJ-009-FS	Push-Pull	Tin	Shielded	Gold	Audio Video	Keyed	12 V 100 VAC	Metal	Copper Alloy	9	Silver	UL94 V-0	Board Guide Board Lock	Polybutylene Terephthalate (PBT) Glass Filled	Mini DIN	Female Sockets Jack	Phosphor Bronze	Solder	70 °C	-25 °C	Through Hole Right Angle
