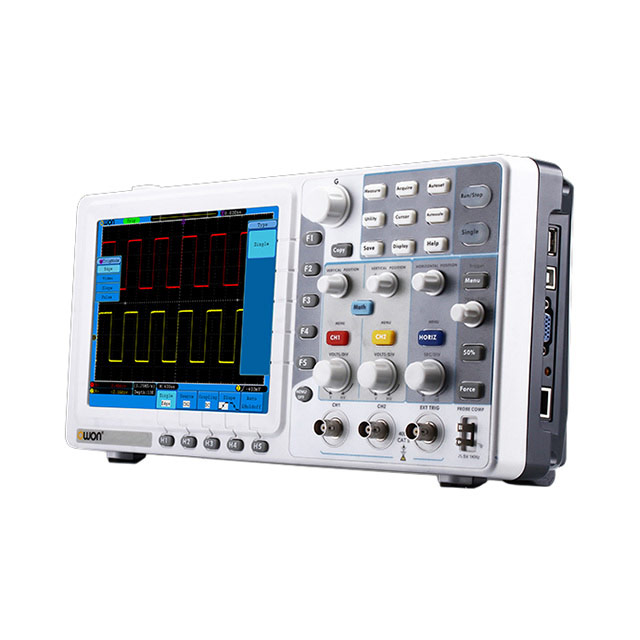

SDS5052E-V

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 50MHZ 2 CH 500MS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 50MHZ 2 CH 500MS/S

Technical Specifications

Parameters and characteristics for this part

Specification	SDS5052E-V

Bandwidth	50 MHz
Channels	2
Display Type	LCD - Color
Function	Record
Includes	Probe, Power Cord, USB Cable, Bag, Manual
Input Impedance	1 M, 15 pF
Interface	USB, Ethernet
Memory Size	10 kpts
Probe Type	Passive 10:1 (2)
Rise Time (Typ)	7 ns
Sampling Rate (Per Second)	500 M
Type	Bench
Voltage - Input (Max) [Max]	400 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Display Type	Interface	Rise Time (Typ)	Channels	Sampling Rate (Per Second)	Bandwidth	Type	Probe Type	Input Impedance	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Includes	Voltage - Input (Max) [Max]	Memory Size
Owon Technology Lilliput Electronics (USA) Inc SDS5052E-V	LCD - Color	Ethernet USB	7 ns	2	500 M	50 MHz	Bench	Passive 10:1 (2)	1 M 15 pF	Record	100 VAC	240 VAC	Bag Manual Power Cord Probe USB Cable	400 V	10 kpts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 319.00

General part information

50 MHz Bench Oscilloscopes Ethernet, USB Interface LCD - Color Display 2 Channel 400V Record

Technical documentation and resources

No documents available
