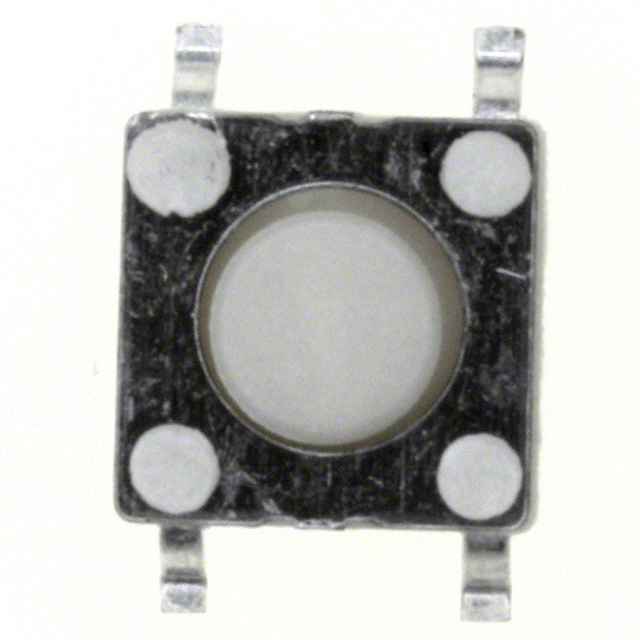

MJTP1138ETUBE

Active

APEM

TACT SWITCH PCB MOUNT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

TACT SWITCH PCB MOUNT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	MJTP1138ETUBE

Actuator Height off PCB, Vertical [z]	7.3 mm
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Outline [y]	Outline [x]	Termination Style	Mechanical Life	Actuator Material	Actuator Type	Contact Rating @ Voltage	Features	Actuator Height off PCB, Vertical [z]	Mounting Type	Actuator Orientation	Switch Travel	Illumination	Switch Function	Operating Force	Actuator Height off PCB, Vertical
APEM MJTP1125A	-20 C	70 °C	SPST-NO	6.2 mm	6.2 mm	Gull Wing	100000 Cycles	Nylon 4/6 Polyamide (PA46)	Standard	0.05 A 12 VDC	Grounding Pin	2.5 mm	Surface Mount	Top Actuated	0.25 mm	Non-Illuminated	Off-Mom
APEM MJTP1106SATR	-20 C	70 °C	SPST-NO	3.5 mm	6 mm	Gull Wing	100000 Cycles	Nylon 4/6 Polyamide (PA46)	Rectangular Button	0.05 A 12 VDC	Tactile Feedback		Surface Mount	Top Actuated	0.25 mm	Non-Illuminated	Off-Mom	180 gf	5 mm
APEM MJTP1138ETUBE	-20 C	70 °C	SPST-NO	6 mm	6 mm	Gull Wing	100000 Cycles	Nylon 4/6 Polyamide (PA46)	Standard	0.05 A 12 VDC	Tactile Feedback	7.3 mm	Surface Mount	Top Actuated	0.25 mm	Non-Illuminated	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
