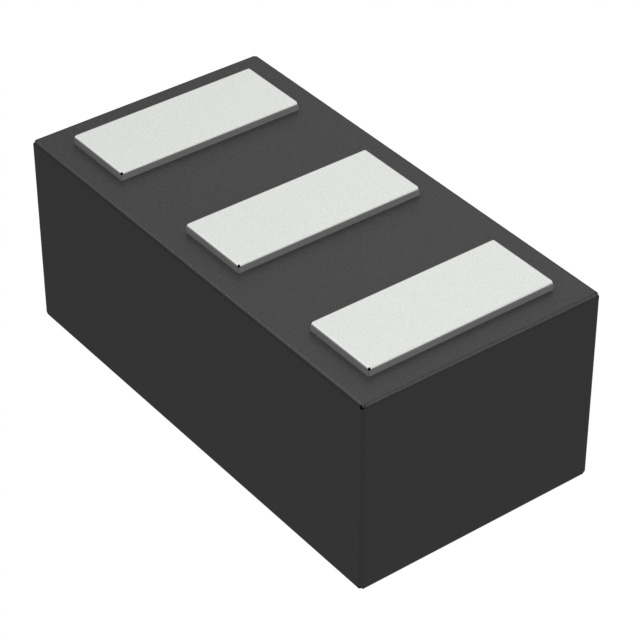

UCLAMP3331ZATFT

Active

Semtech Corporation

ESD PROTECTION DEVICE, 10 V, DSN0603, 2 PINS, 3.3 V, ΜCLAMP SERIES

Search across all available documentation for this part.

Active

Semtech Corporation

ESD PROTECTION DEVICE, 10 V, DSN0603, 2 PINS, 3.3 V, ΜCLAMP SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	UCLAMP3331ZATFT

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	16.5 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	0603 Metric
Package / Case	0201
Power - Peak Pulse	30 W
Power Line Protection	False
Supplier Device Package	SLP0603P2X3F
Type	Zener
Voltage - Breakdown (Min) [Min]	3.9 V
Voltage - Clamping (Max) @ Ipp [Max]	10 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Bidirectional Channels [custom]	Power Line Protection	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Applications	Mounting Type	Package / Case	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Type	Power - Peak Pulse
Semtech Corporation UCLAMP3331ZATFT	1		5 A	3.9 V	16.5 pF	General Purpose	Surface Mount	0603 Metric	0201	10 V	3.3 V	-40 °C	125 ¯C	SLP0603P2X3F	Zener	30 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SLP0603P2X3F
