0150390413

Active

Molex

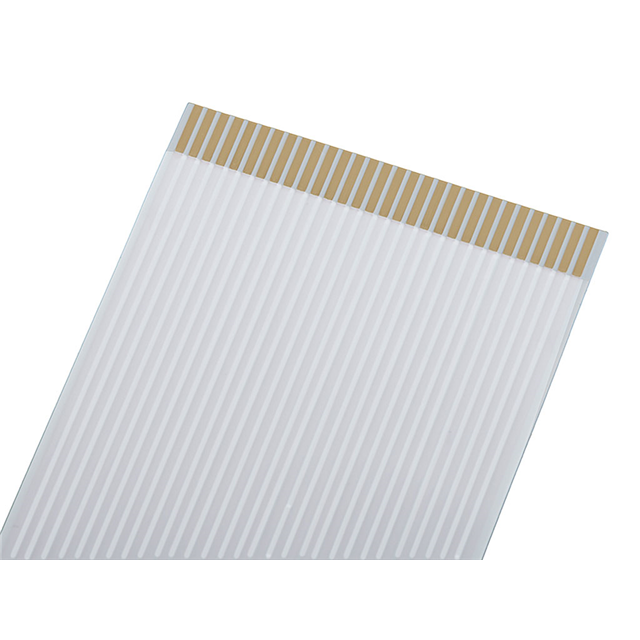

CABLE FFC/FPC 24POS 1MM 8"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 24POS 1MM 8"

Technical Specifications

Parameters and characteristics for this part

Specification	0150390413

null

Part	Number of Conductors	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Cable Type	Length	Length [x]	Pitch [x]	Pitch [x]	Length
Molex 0150390266	10	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	FFC FPC	304.8 mm	12 in	0.039 in	1 mm
Molex 0150390413
Molex 0150390947	25	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	FFC FPC	76.2 mm		0.039 in	1 mm	3 in
Molex 0150390373	20	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	FFC FPC	254 mm	10 in	0.039 in	1 mm
Molex 0150390250	10	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	FFC FPC	76.2 mm		0.039 in	1 mm	3 in
Molex 0150390207	6	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	FFC FPC	101.6 mm		0.039 in	1 mm	4 in
Molex 0150390291	14	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	FFC FPC	50.8 mm		0.039 in	1 mm	2 in
Molex 0150390399	24	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	FFC FPC	29.97 mm		0.039 in	1 mm	1.18 in
Molex 0150390253	10	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	FFC FPC	127 mm		0.039 in	1 mm	5 in
Molex 0150390431	26	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	FFC FPC	152.4 mm		0.039 in	1 mm	6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Cable

Technical documentation and resources

No documents available
