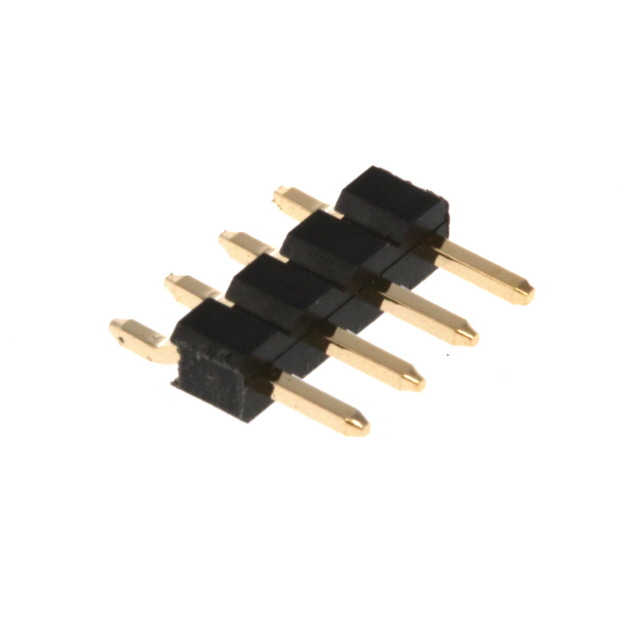

PM20C04HBNN

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, SINGLE ROW, 2.0

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, SINGLE ROW, 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	PM20C04HBNN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish Thickness - Mating	Insulation Material	Number of Rows	Number of Positions Loaded	Contact Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Shrouding	Fastening Type	Connector Type	Termination	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Insulation Color	Number of Positions
METZ CONNECT USA Inc. PM20C04HBDN	Flash	Polyethylene	2	All	Male Pin	Square	3.05 mm	0.12 in	-40 °C	105 ░C	Surface Mount Right Angle	0.079 in	2 mm	Copper Zinc	Unshrouded	Push-Pull	Header	Solder	Gold	0.079 in	2 mm	0.079 in	2 mm	Black	8
METZ CONNECT USA Inc. PM20C04HBNN	Flash	Polyethylene	1	All	Male Pin	Square	3 mm	0.118 in	-40 °C	105 ░C	Surface Mount Right Angle	0.079 in	2 mm	Copper Zinc	Unshrouded	Push-Pull	Header	Solder	Gold			0.079 in	2 mm	Black	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)
