P70-6000045R

Active

Harwin Inc.

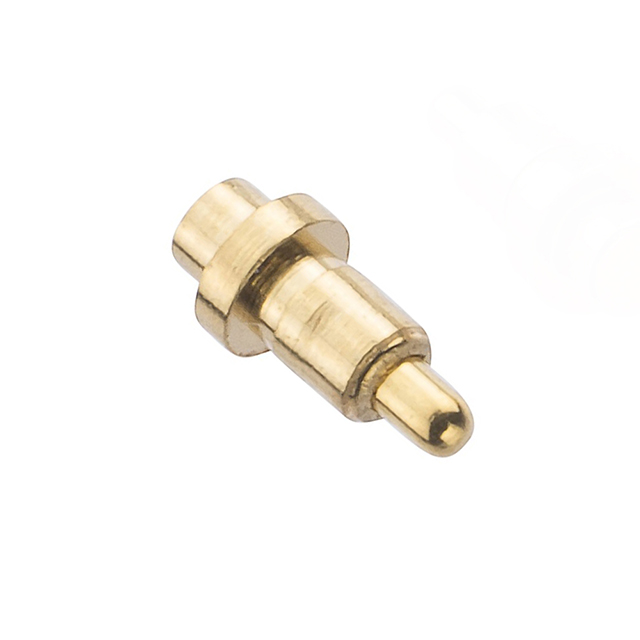

SPRING LOADED CONTACT W/PEG, 2.8MM, SMT

Search across all available documentation for this part.

Active

Harwin Inc.

SPRING LOADED CONTACT W/PEG, 2.8MM, SMT

Technical Specifications

Parameters and characteristics for this part

Specification	P70-6000045R

Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Contact Material	Brass
Contact Type	Sleeve & Plunger (Pogo Pins)
Mating Cycles	10000
Maximum Working Height [Max]	2.2 mm
Maximum Working Height [Max]	0.087 in
Minimum Working Height [Min]	1.9 mm
Minimum Working Height [Min]	0.075 in
Mounting Type	Through Hole
Operating Force - Mid Compression	39.77 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pad Layout Dimension [diameter]	0.067 in
Pad Layout Dimension [diameter]	1.7 mm
Plunger Size	0.024 in
Plunger Size	0.6 mm
Plunger Size [diameter]	Dia
Recommended Working Height [z]	0.083 in
Recommended Working Height [z]	2.1 mm

Part	Recommended Working Height [z]	Recommended Working Height [z]	Maximum Working Height [Max]	Maximum Working Height [Max]	Mating Cycles	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Minimum Working Height [Min]	Minimum Working Height [Min]	Operating Force - Mid Compression	Plunger Size [diameter]	Plunger Size	Plunger Size
Harwin Inc. P70-6000045R	0.083 in	2.1 mm	2.2 mm	0.087 in	10000	Gold	16 µin	0.41 µm	Through Hole	Brass	0.067 in	1.7 mm	Sleeve & Plunger (Pogo Pins)	85 °C	-40 °C	1.9 mm	0.075 in	39.77 gf	Dia	0.024 in	0.6 mm
