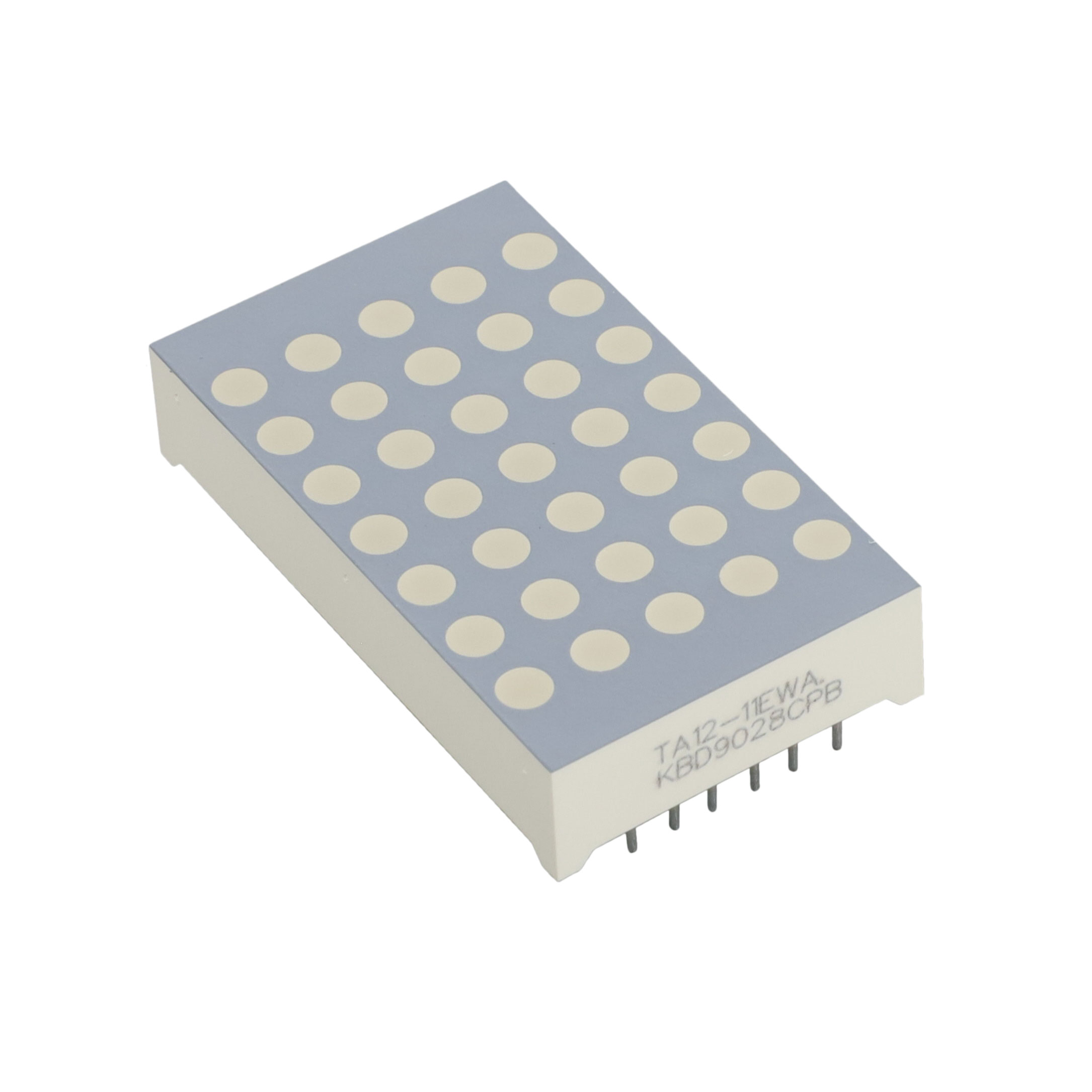

TA12-11EWA
ActiveKingbright
LED MATRIX 5X7 1.2" 627NM RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TA12-11EWA
ActiveKingbright
LED MATRIX 5X7 1.2" 627NM RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TA12-11EWA |
|---|---|
| Color | Red |
| Configuration [x] | 5 |
| Configuration [y] | 7 |
| Internal Connection | Common Anode Column, Common Cathode Row |
| Millicandela Rating | 14 mcd |
| Size / Dimension [x] | 22.9 mm |
| Size / Dimension [x] | 0.9 " |
| Size / Dimension [y] | 39 mm |
| Size / Dimension [y] | 1.54 " |
| Size / Dimension [z] | 8 mm |
| Size / Dimension [z] | 0.32 " |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.01 | |
| 21 | $ 4.25 | |||
| 105 | $ 3.48 | |||
| 504 | $ 2.93 | |||
| 1008 | $ 2.69 | |||
| 2016 | $ 2.58 | |||
Description
General part information
TA12-11 Series
Dot Matrix Display Module 5 x 7 Common Cathode Row, Common Anode Column Red 2V 0.90" L x 1.54" W x 0.32" H (22.90mm x 39.00mm x 8.00mm)
