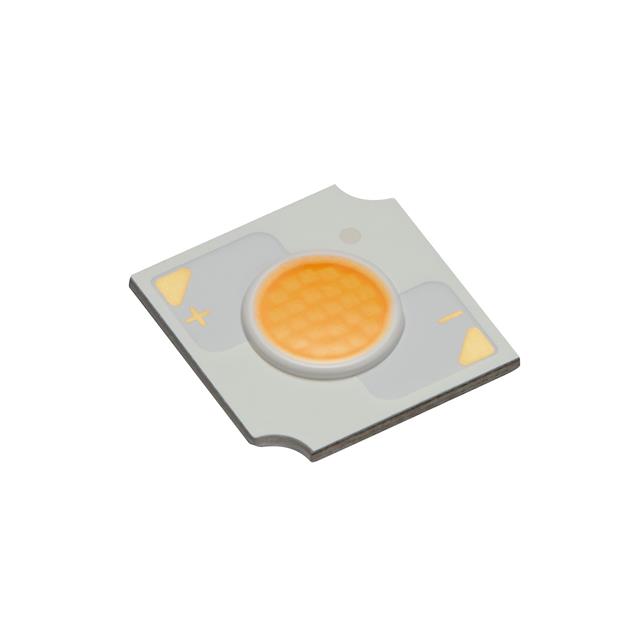

CLU703-1202E1-303H7X5
ActiveCitizen Finedevice Co Ltd
LED COB CLU703 WM WHT SQ 3000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLU703-1202E1-303H7X5
ActiveCitizen Finedevice Co Ltd
LED COB CLU703 WM WHT SQ 3000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLU703-1202E1-303H7X5 |
|---|---|
| CCT (K) | 3000 K |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 97 |
| Current - Max [Max] | 600 mA |
| Current - Test | 350 mA |
| Features | With Connector |
| Height [z] | 1.4 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 6 mm Dia |
| Lumens/Watt @ Current - Test | 100 lm/W |
| Luminous Flux @ Current/Temperature | 1370 lm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Voltage - Forward (Vf) (Typ) | 36.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.42 | |
| 54 | $ 4.76 | |||
| 108 | $ 4.50 | |||
| 540 | $ 4.04 | |||
| 1026 | $ 3.90 | |||
| 2052 | $ 3.77 | |||
Description
General part information
CLU703 Series
LED Lighting COBs Engines Modules Chip On Board (COB) CLU703 White, Warm Square
