AA-200-24-44-00-XX

Active

Laird Thermal Systems, Inc.

THERMOELECT ASSY AIR-AIR 193W

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

THERMOELECT ASSY AIR-AIR 193W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage	Fan Location	Heat Transfer Type	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [y]	Operating Temperature [Min]	Operating Temperature [Max]	Current	Power - Cooling	Weight	Weight	Power - Input
Laird Thermal Systems, Inc. AA-200-24-24-00-10	24 V	Cold Side / Warm Side	Air to Air	400 mm	178 mm	153 mm	-10 °C	56 °C	9.9 A	180 W
Laird Thermal Systems, Inc. AA-200-24-44-LK-XX	24 V	Cold Side / Warm Side	Air to Air	400 mm	178 mm	180 mm	-40 °C	55 °C	11.3 A	193 W	15 lbs	6.8 kg
Laird Thermal Systems, Inc. AA-200-24-22-00-00	24 V	Cold Side / Warm Side	Air to Air	400 mm	178 mm	153 mm	-10 °C	48 °C	11.3 A	193 W	16 lbs	7.3 kg	271 W
Laird Thermal Systems, Inc. AA-200-24-44-00-XX	24 V	Cold Side / Warm Side	Air to Air	400 mm	178 mm	180 mm	-40 °C	55 °C	11.3 A	193 W	15 lbs	6.8 kg

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

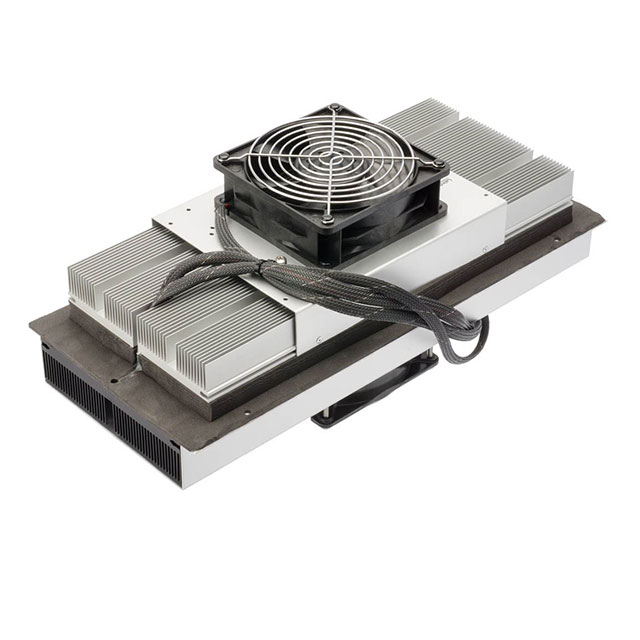

Air to Air Thermoelectric Assembly 193 W
