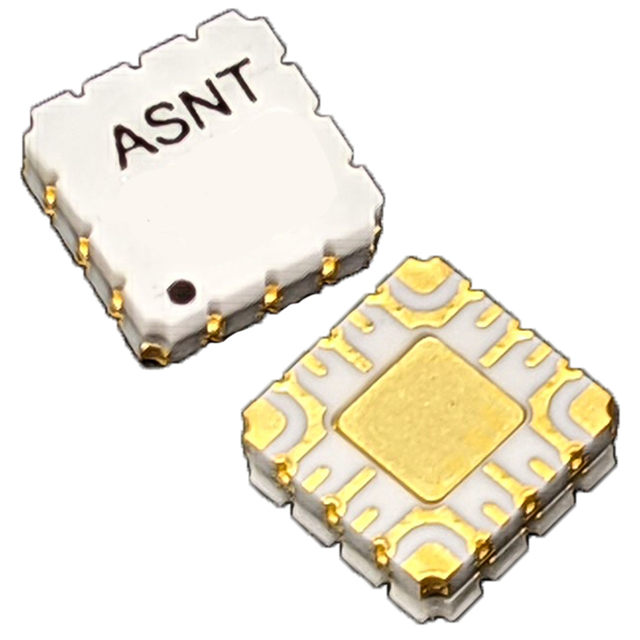

ASNT5160-KHC
ActiveADSANTEC
IC GATE AND 1CH 2-INP 24CQFN
Deep-Dive with AI
Search across all available documentation for this part.
ASNT5160-KHC
ActiveADSANTEC
IC GATE AND 1CH 2-INP 24CQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASNT5160-KHC |
|---|---|
| Current - Output High, Low | 85 mA |
| Current - Quiescent (Max) [Max] | 85 mA |
| Features | CML, Differential, Low Jitter |
| Logic Type | OR, AND |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 24-CQFN |
| Supplier Device Package | 24-CQFN |
| Voltage - Supply [Max] | 3.5 V |
| Voltage - Supply [Min] | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 900.00 | |
| 25 | $ 850.00 | |||
| 50 | $ 800.00 | |||
| 100 | $ 675.00 | |||
| 500 | $ 550.00 | |||
| 1000 | $ 450.00 | |||
Description
General part information
ASNT5160 Series
AND, OR IC 1 Channel Low Jitter, CML, Differential 24-CQFN
Documents
Technical documentation and resources
No documents available
