Technical Specifications
Parameters and characteristics for this part
| Specification | N5040 2 |
|---|---|
| Actuator Diameter [diameter] | 4.78 mm |
| Actuator Diameter [diameter] | 0.188 in |
| Color | Gray |
| For Use With/Related Products | Multiple Series |
| Ingress Protection | IP66/IP68 |
| Material | Silicone Rubber |
| Mounting Feature | Front of Panel |
| Operating Temperature [Max] | 204 °C |
| Operating Temperature [Min] | -70 °C |
| Size / Dimension [z] | 7.95 mm |
| Size / Dimension [z] | 0.313 in |
| Thread Size | 1/4-40 NS-2B |
| Type | Pushbutton, Full Boot |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.33 | |
| 10 | $ 2.27 | |||
| 25 | $ 2.24 | |||
| 50 | $ 2.21 | |||
| 100 | $ 2.18 | |||
| 250 | $ 2.16 | |||
Description
General part information

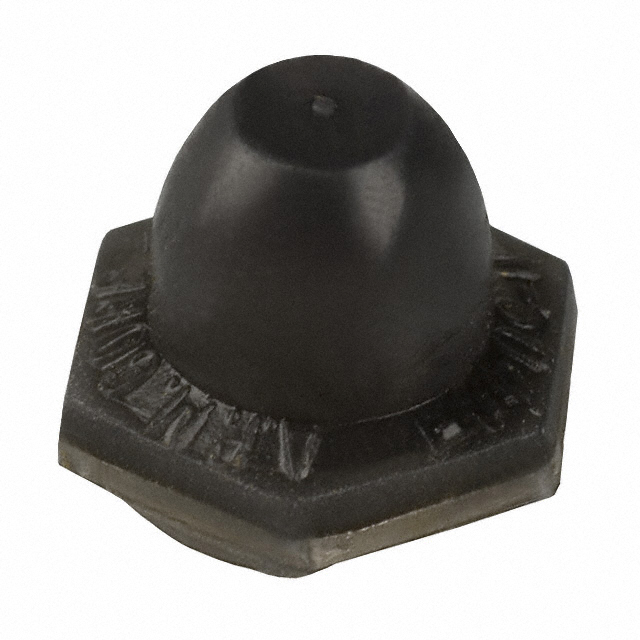

N5040 Series
PUSHBUTTON FULL BOOT GRAY
