2314749

Active

Phoenix Contact

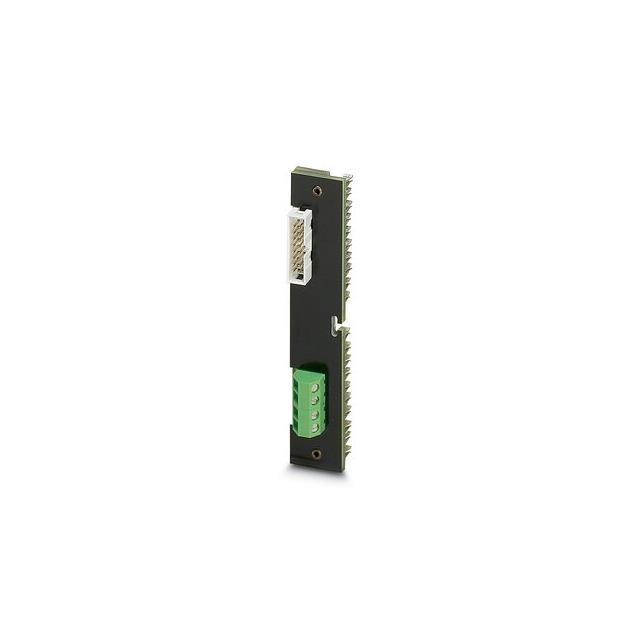

FRONT ADAPTER

Search across all available documentation for this part.

Active

Phoenix Contact

FRONT ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	2314749

Convert From (Adapter End)	PLC S7-300
Convert To (Adapter End)	Male Pins, Rectangular Connector
Convert To (Adapter End)	2 Rows, 16 Pos
Mounting Type	Board Mounted
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	16 AWG

Part	Convert To (Adapter End)	Convert To (Adapter End)	Mounting Type	Convert From (Adapter End)	Convert From (Adapter End)	Wire Gauge [Max]	Wire Gauge [Min]
Phoenix Contact 2318237	Male Pins Rectangular Connector	2 Rows 16 Pos	Board Mounted	1 16	Screw Connection Terminal Blocks
Phoenix Contact 2314749	Male Pins Rectangular Connector	2 Rows 16 Pos	Board Mounted		PLC S7-300	26 AWG	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.61

General part information

Adapter PLC S7-300 To Rectangular Connector, Male Pins, 16 Pos, 2 Rows
