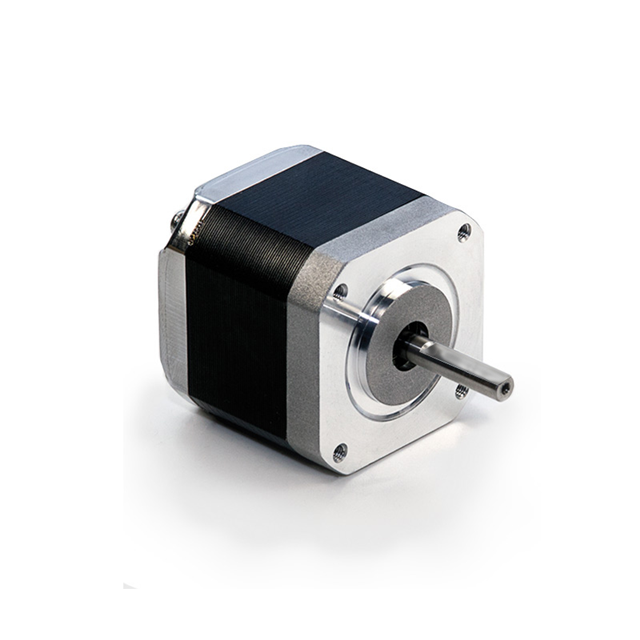

WO-4418F-01
ActiveLIN ENGINEERING
STEPPER MOTOR
Deep-Dive with AI
Search across all available documentation for this part.
WO-4418F-01
ActiveLIN ENGINEERING
STEPPER MOTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WO-4418F-01 |
|---|---|
| Coil Resistance | 7.6 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 0.67 A |
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 24 mm |
| Length - Shaft and Bearing [x] | 0.945 in |
| Mounting Hole Spacing | 1.22 in |
| Mounting Hole Spacing | 31 mm |
| NEMA Frame Size | 17 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 0.615 gcm² |
| Size / Dimension [x] | 42.4 mm |
| Size / Dimension [x] | 1.669 in |
| Size / Dimension [y] | 42.4 mm |
| Size / Dimension [y] | 1.669 in |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 190.7 mNm |
| Torque - Holding (oz-in / mNm) | 27 oz-in |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 51.59 | |
| 5 | $ 47.41 | |||
| 10 | $ 45.72 | |||
| 25 | $ 43.57 | |||
| 64 | $ 41.48 | |||
| 128 | $ 39.99 | |||
Description
General part information
WO-4418F Series
Bipolar Stepper Motor Frame Size 17 200.0 Step 670 mA 24VDC
Documents
Technical documentation and resources
No documents available
