SBTAAT0-E010PN-0000

Active

ODU

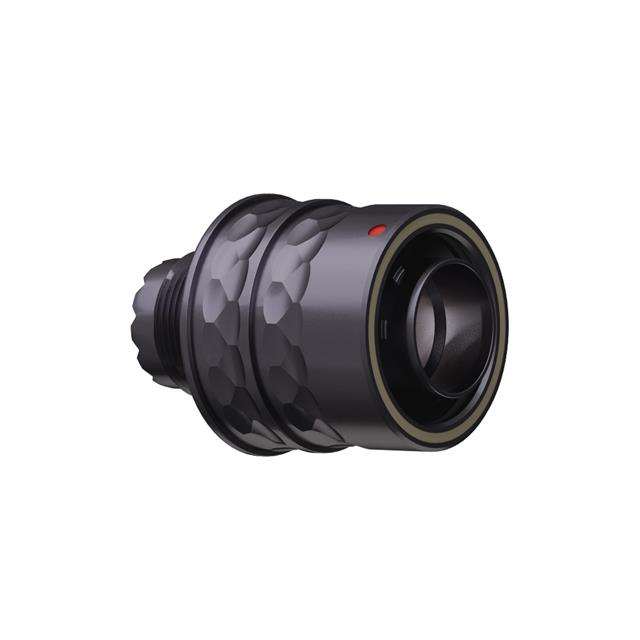

ODU AMC SERIES T PUSH-PULL PLUG

Search across all available documentation for this part.

Active

ODU

ODU AMC SERIES T PUSH-PULL PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	SBTAAT0-E010PN-0000

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Tin Nickel
Shell Material	Aluminum
Shell Size - Insert	9
Shielding	Shielded
Termination	Crimp
Voltage Rating	50 V

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Voltage Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Features	Ingress Protection	Shielding	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Shell Material	Termination	Color	Shell Finish	Insert Material	Connector Type	Fastening Type	Contact Material	Mounting Type	Orientation
ODU SBTAAT0-ED08PN-0000	1.27 µm	50 µin	9	50 V	8	-65 ░C	347 °F	Metal	Backshell Coupling Nut	IP68 IP69K	Shielded	UL94 V-0	5 A	Gold	Aluminum	Crimp	Silver	Tin Nickel	Polyetheretherketone (PEEK)	Male Pins Plug	Push-Pull	Copper Alloy	Free Hanging (In-Line)	A
ODU SBTAAT0-E010PN-0000	1.27 µm	50 µin	9	50 V	10	-65 ░C	347 °F	Metal	Backshell Coupling Nut	IP68 IP69K	Shielded	UL94 V-0	5 A	Gold	Aluminum	Crimp	Silver	Tin Nickel	Polyetheretherketone (PEEK)	Male Pins Plug	Push-Pull	Copper Alloy	Free Hanging (In-Line)	A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug, Male Pins Crimp
