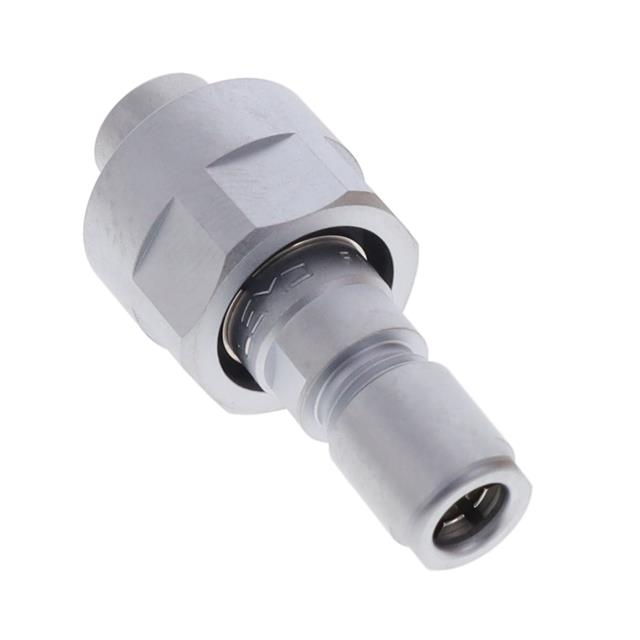

FVN.0V.304.CLAC35

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	FVN.0V.304.CLAC35

Backshell Material, Plating	Brass, Chrome
Color	Silver
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	7 A
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

Part	Current Rating (Amps)	Shell Material	Contact Finish - Mating	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Insert Material	Features	Shell Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Connector Type	Orientation	Backshell Material, Plating	Primary Material	Color	Number of Positions
LEMO FVN.0V.304.CLAC40	7 A	Brass	Gold	Shielded	0.126 in	4.2 mm	0.165 in	3.2 mm	Polyetheretherketone (PEEK)	Backshell Coupling Nut	Chrome	Free Hanging (In-Line)	-20 C	200 °C	Brass	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	304	Female Sockets Male Pins Plug	Keyed	Brass Chrome	Metal	Silver	4
LEMO FVN.0V.304.CLAC35	7 A	Brass	Gold	Shielded					Polyetheretherketone (PEEK)	Backshell Coupling Nut	Chrome	Free Hanging (In-Line)	-20 C	200 °C	Brass	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	304	Female Sockets Male Pins Plug	Keyed	Brass Chrome	Metal	Silver	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup
