YTQ-130-01-F-Q

Active

Samtec Inc.

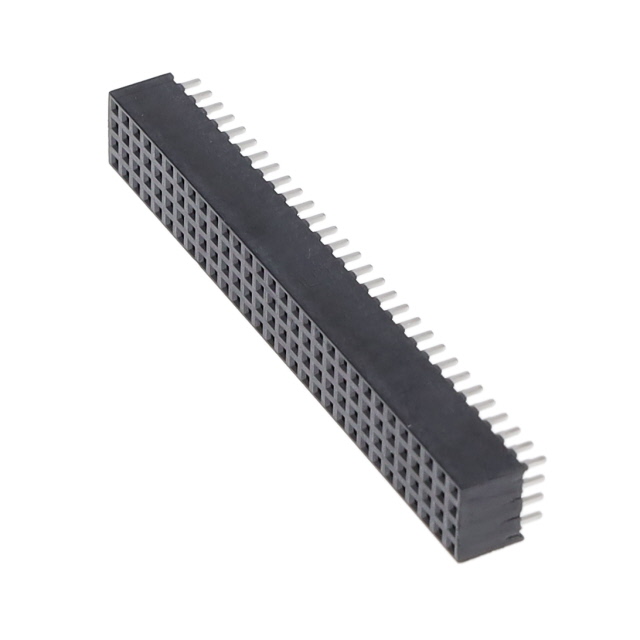

CONN HD ARRAY RCP 120P VERT GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY RCP 120P VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	YTQ-130-01-F-Q

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	120
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Termination	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Color	Contact Finish - Mating	Insulation Material	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Row Spacing - Mating	Row Spacing - Mating
Samtec Inc. YTQ-130-03-F-Q	5.28 mm	0.208 in	Tin	3 µin	0.076 µm	Phosphor Bronze	Push-Pull	Solder	120	0.079 in	2 mm	6.35 mm	0.25 in	All	Black	Gold	Liquid Crystal Polymer (LCP)	Square	-55 °C	125 °C	Forked	Through Hole	1.27 µm	50 µin	Socket	0.079 in	2 mm
Samtec Inc. YTQ-130-01-F-Q	2.29 mm	0.09 "	Tin	3 µin	0.076 µm	Phosphor Bronze	Push-Pull	Solder	120	0.079 in	2 mm	6.35 mm	0.25 in	All	Black	Gold	Liquid Crystal Polymer (LCP)	Square	-55 °C	125 °C	Forked	Through Hole	1.27 µm	50 µin	Socket	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Socket Connector 0.079" (2.00mm) Through Hole Gold
