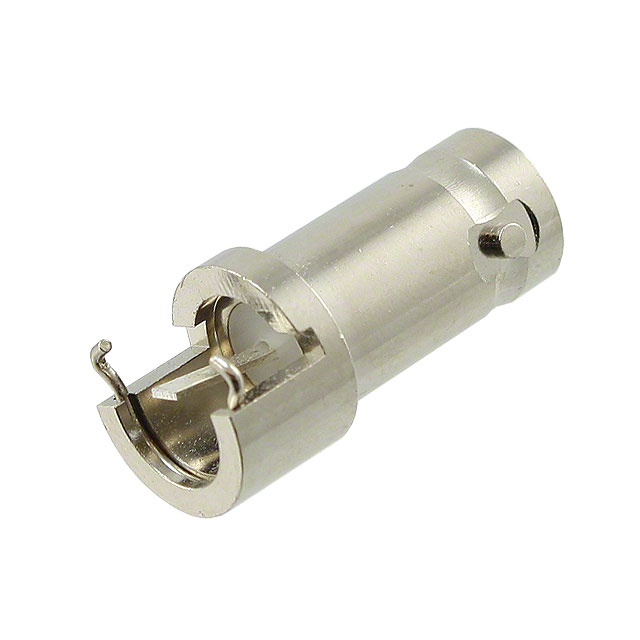

361V509E
ActiveWinchester Interconnect
CONN BNC JACK STR 50OHM EDGE MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
361V509E
ActiveWinchester Interconnect
CONN BNC JACK STR 50OHM EDGE MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 361V509E |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Tin |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Ingress Protection | Weatherproof |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
361V509 Series
BNC Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
