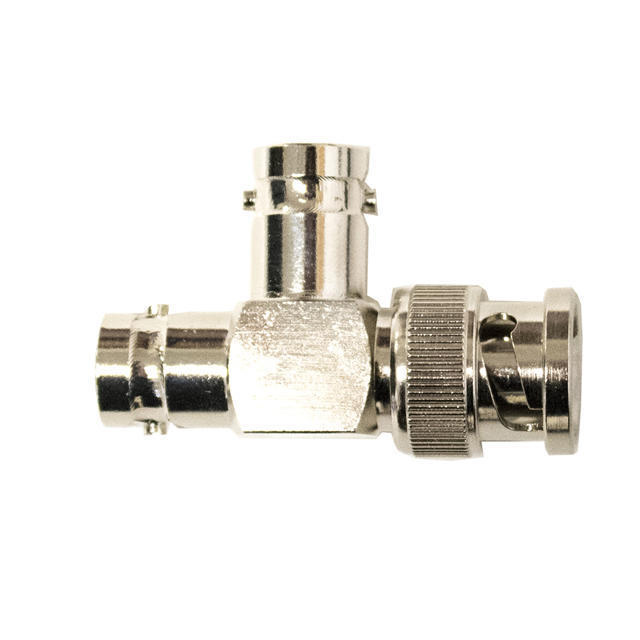

BU-P4896
ActiveMueller Electric Co
RF ADAPTER, BNC JACK-PLUG/JACK, 50 OHM ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-P4896 |
|---|---|
| Adapter Series | BNC to BNC, Dual |
| Adapter Type | Plug to Jack |
| Body Material | Brass |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Plug, Male Pin |
| Convert To (Adapter End) | BNC Jack, Female Socket (2) |
| Fastening Type | Bayonet Lock |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | T-Shape |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-P48 Series
Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohms
