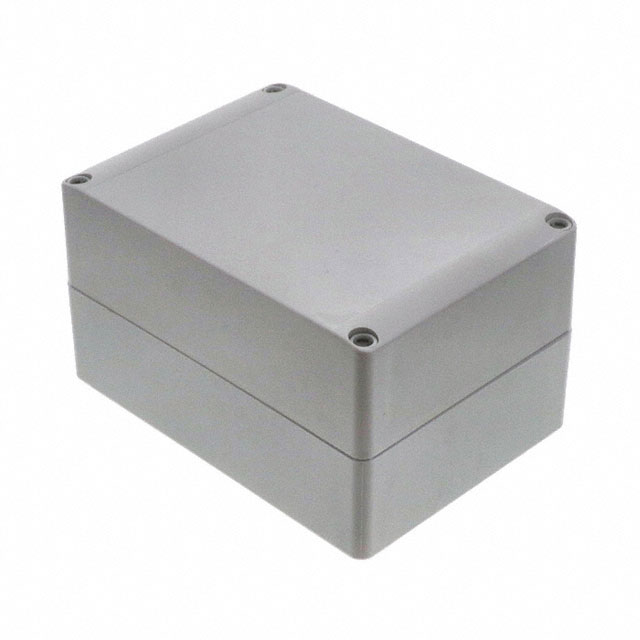

Q181310PCE

Active

Hoffman Enclosures, Inc.

BOX PLASTIC GRAY 6.89"L X 4.92"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX PLASTIC GRAY 6.89"L X 4.92"W

Technical Specifications

Parameters and characteristics for this part

Specification	Q181310PCE

Area (L x W)	33.9 in˛
Area (L x W)	219 cm˛
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Card Guides, Sealing Gasket
Height [z]	100 mm
Height [z]	3.937 in
Material	Plastic, Polycarbonate
Ratings	4X, 12, IP67, 13, UL-508A, NEMA 4, 6
Size / Dimension [x]	175 mm
Size / Dimension [x]	6.89 in
Size / Dimension [y]	125 mm
Size / Dimension [y]	4.921 "
Thickness	3 mm
Thickness	0.118 in

Part	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Color	Material	Design	Height [z]	Height [z]	Features	Thickness	Thickness	Ratings
Hoffman Enclosures, Inc. Q181310PCE	Box	125 mm	175 mm	4.921 "	6.89 in	33.9 in˛	219 cm˛	Gray	Plastic Polycarbonate	Cover Included	100 mm	3.937 in	Card Guides PCB Supports Sealing Gasket	3 mm	0.118 in	12 13 4X 6 IP67 NEMA 4 UL-508A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.75

General part information

Box Plastic, Polycarbonate Gray Cover Included 6.890" L x 4.921" W (175.00mm x 125.00mm) X 3.937" (100.00mm)
