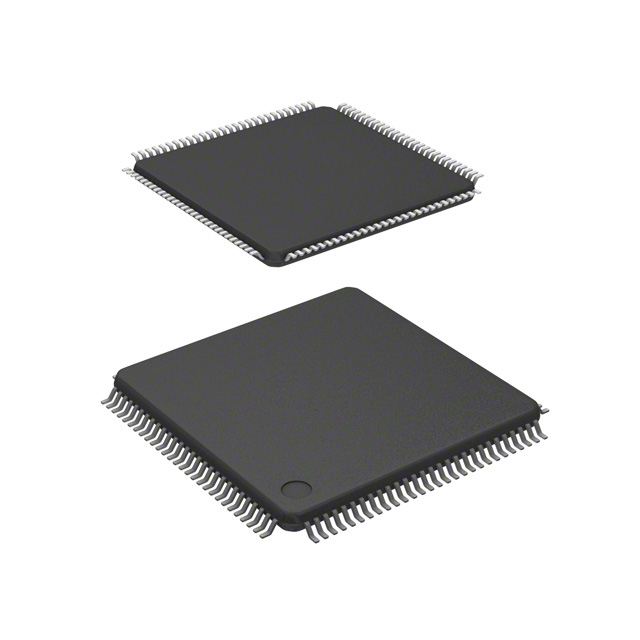

S912XEQ512J2CALR
ActiveFreescale Semiconductor - NXP
IC,MICROCONTROLLER,16-BIT,CPU12 CPU,CMOS,QFP,112PIN,PLASTIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S912XEQ512J2CALR
ActiveFreescale Semiconductor - NXP
IC,MICROCONTROLLER,16-BIT,CPU12 CPU,CMOS,QFP,112PIN,PLASTIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S912XEQ512J2CALR |
|---|---|
| Connectivity | SCI, I2C, CANbus, IrDA, EBI/EMI, SPI |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Data Converters [custom] | 16 |
| Data Converters [custom] | 12 b |
| EEPROM Size | 4K x 8 |
| Mounting Type | Surface Mount |
| Number of I/O | 91 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External |
| Package / Case | 112-LQFP |
| Peripherals | LVD, WDT, PWM, POR |
| Program Memory Size | 512 KB |
| Program Memory Type | FLASH |
| Speed | 50 MHz |
| Supplier Device Package | 112-LQFP (20x20) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.72 V |
S912 Series
...
| Part | Peripherals | Speed | Mounting Type | EEPROM Size | Core Processor | Connectivity | Package / Case | Data Converters | RAM Size | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Program Memory Size | Program Memory Type | Core Size | Number of I/O | Operating Temperature [Min] | Operating Temperature [Max] | Oscillator Type | RAM Size | Data Converters [custom] | Data Converters [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Freescale Semiconductor - NXP | LVD POR PWM WDT | 32 MHz | Surface Mount | 512 x 8 | S12Z | CANbus I2C IrDA LINbus SCI SPI UART/USART | 48-LQFP | A/D 10x10b D/A 1x8b | 1 K | 48-LQFP (7x7) | 5.5 V | 18 V | 128 KB | FLASH | 16-Bit | 34 | -40 °C | 125 °C | Internal | |||
Freescale Semiconductor - NXP | LVD POR PWM WDT | 80 MHz | Surface Mount | HCS12X | CANbus I2C SCI SPI | 80-QFP | 16x10b 8x10b | 80-QFP (14x14) | 2.35 V | 5.5 V | 64 KB | FLASH | 16-Bit | 59 | -40 °C | 105 °C | Internal | 4K x 8 | ||||
Freescale Semiconductor - NXP | DMA POR PWM WDT | 32 MHz | Surface Mount | 2K x 8 | S12Z | CANbus I2C SCI SPI | 48-LQFP | A/D 10x10b D/A 1x8b | 8 K | 48-LQFP (7x7) | 128 KB | FLASH | 16-Bit | 28 | -40 °C | 125 °C | Internal | |||||
Freescale Semiconductor - NXP | LVD POR PWM WDT | 50 MHz | Surface Mount | 4K x 8 | HCS12X | CANbus EBI/EMI I2C IrDA SCI SPI | 112-LQFP | 24 K | 112-LQFP (20x20) | 1.72 V | 5.5 V | 384 KB | FLASH | 16-Bit | 91 | -40 °C | 105 °C | External | 16 | 12 b | ||
Freescale Semiconductor - NXP | LVD POR PWM WDT | 50 MHz | Surface Mount | 4K x 8 | HCS12X | CANbus EBI/EMI I2C IrDA SCI SPI | 144-LQFP | 144-LQFP (20x20) | 1.72 V | 5.5 V | 512 KB | FLASH | 16-Bit | 119 I/O | -40 °C | 125 °C | External | 24 | 12 | |||
Freescale Semiconductor - NXP | LVD POR PWM WDT | 50 MHz | Surface Mount | 4K x 8 | HCS12X | CANbus EBI/EMI I2C IrDA SCI SPI | 112-LQFP | 112-LQFP (20x20) | 1.72 V | 5.5 V | 512 KB | FLASH | 16-Bit | 91 | -40 °C | 125 °C | External | 16 | 12 b | |||
Freescale Semiconductor - NXP | LVD POR PWM WDT | 50 MHz | Surface Mount | 4K x 8 | HCS12X | CANbus EBI/EMI I2C IrDA SCI SPI | 112-LQFP | 112-LQFP (20x20) | 1.72 V | 5.5 V | 512 KB | FLASH | 16-Bit | 91 | -40 °C | 105 °C | External | 16 | 12 b | |||
Freescale Semiconductor - NXP | LVD POR PWM WDT | 50 MHz | Surface Mount | 4K x 8 | HCS12X | CANbus EBI/EMI I2C IrDA SCI SPI | 80-QFP | 24 K | 80-QFP (14x14) | 1.72 V | 5.5 V | 384 KB | FLASH | 16-Bit | 59 | -40 °C | 125 °C | External | 8 | 12 b | ||
Freescale Semiconductor - NXP | DMA POR PWM WDT | 32 MHz | Surface Mount | S12Z | CANbus I2C SCI SPI | 48-LQFP | A/D 10x12b D/A 1x8b | 48-LQFP (7x7) | 64 KB | FLASH | 16-Bit | 28 | -40 °C | 105 °C | Internal | 4K x 8 | ||||||
Freescale Semiconductor - NXP | LVD POR PWM WDT | 50 MHz | Surface Mount | 4K x 8 | HCS12X | CANbus EBI/EMI I2C IrDA SCI SPI | 112-LQFP | 112-LQFP (20x20) | 1.72 V | 5.5 V | 512 KB | FLASH | 16-Bit | 91 | -40 °C | 85 °C | External | 16 | 12 b |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 13.74 | |
Description
General part information
S912 Series
HCS12X HCS12X Microcontroller IC 16-Bit 50MHz 512KB (512K x 8) FLASH 112-LQFP (20x20)
