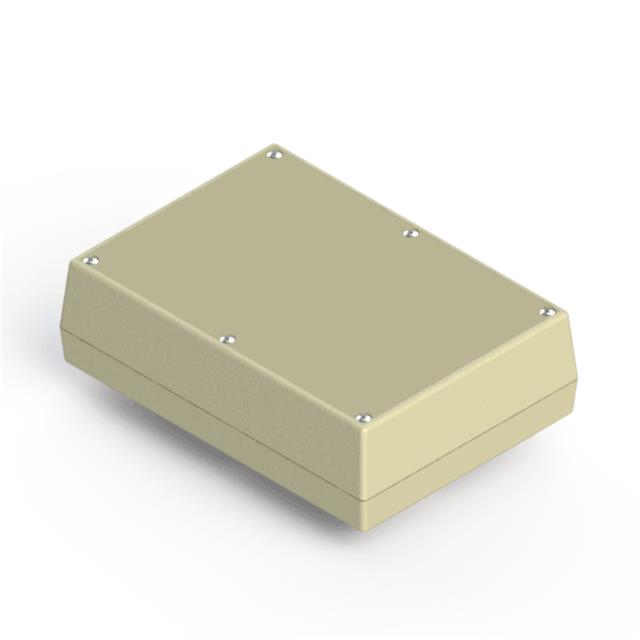

172R,AL

Active

Serpac

BOX ABS ALMOND 6.88"L X 4.88"W

Deep-Dive with AI

Search across all available documentation for this part.

172R,AL

Active

Serpac

BOX ABS ALMOND 6.88"L X 4.88"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172R,AL

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.43 lb
Weight	195.04 g

172R Series

Part	Features	Design	Weight	Weight	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Thickness	Thickness	Container Type	Color	Height [z]	Height [z]	Material Flammability Rating	Ratings
Serpac 172R,BK	Front Access PCB Supports	Hand Held Split Sides	0.43 lb	195.04 g	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	Plastic ABS	2.54 mm	0.1 in	Box	Black	50.8 mm	2 in	UL94 HB	IP40 NEMA 1
Serpac 172RI,BK	Front Access PCB Supports	Hand Held Split Sides	0.43 lb	195.04 g	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	Plastic ABS	2.54 mm	0.1 in	Box	Black	50.8 mm	2 in	UL94 HB	IP40 NEMA 1
Serpac 172RC,AL	Front Access PCB Supports	Hand Held Split Sides	0.43 lb	195.04 g	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	Plastic Polycarbonate	2.54 mm	0.1 in	Box		50.8 mm	2 in		IP40 NEMA 1
Serpac 172RI,GY	Front Access PCB Supports	Hand Held Split Sides	0.43 lb	195.04 g	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	Plastic ABS	2.54 mm	0.1 in	Box	Gray	50.8 mm	2 in	UL94 HB	IP40 NEMA 1
Serpac 172RC,GY	Front Access PCB Supports	Hand Held Split Sides	0.43 lb	195.04 g	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	Plastic Polycarbonate	2.54 mm	0.1 in	Box	Clear Cover/Door Gray	50.8 mm	2 in		IP40 NEMA 1
Serpac 172RC,BK	Front Access PCB Supports	Hand Held Split Sides	0.43 lb	195.04 g	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	Plastic Polycarbonate	2.54 mm	0.1 in	Box	Black Clear Cover/Door	50.8 mm	2 in		IP40 NEMA 1
Serpac 172R,AL	Front Access PCB Supports	Hand Held Split Sides	0.43 lb	195.04 g	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	Plastic ABS	2.54 mm	0.1 in	Box	Almond	50.8 mm	2 in	UL94 HB	IP40 NEMA 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.66

Description

General part information

172R Series

Box Plastic, ABS Almond Hand Held, Split Sides 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.000" (50.80mm)

Documents

Technical documentation and resources

No documents available
