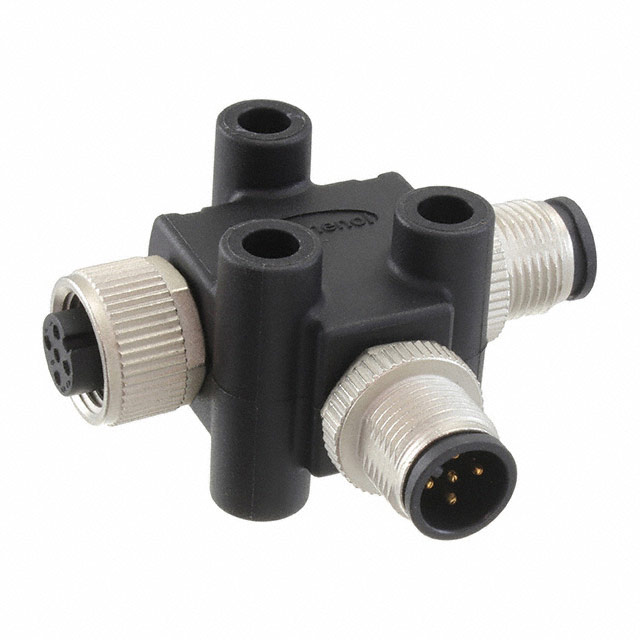

TA-A05M-A05F-A05M-01
ActiveAmphenol LTW
CONN T-ADPT 5P-5/5P M-F/M INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-A05M-A05F-A05M-01 |
|---|---|
| Connector Style | Distributor T-Shaped |
| Convert From (Adapter End) | Male Pins |
| Convert To (Adapter End) | Female Sockets (1), Male Pins (1) |
| Features | Coupling Nut |
| Housing Material | Thermoplastic |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 5 |
| Number of Positions (Convert To) | 5 |
| Number of Positions (Convert To) | 2 |
| Orientation (Convert From) | A |
| Orientation (Convert To) | A |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) [custom] | M12 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.91 | |
| 10 | $ 18.13 | |||
| 25 | $ 17.18 | |||
| 50 | $ 16.93 | |||
| 100 | $ 14.94 | |||
| 250 | $ 13.94 | |||
| 500 | $ 13.64 | |||
Description
General part information
TA-A05M Series
Circular Connector Distributor T-Shaped 5/5 (2) Male Pins/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)
