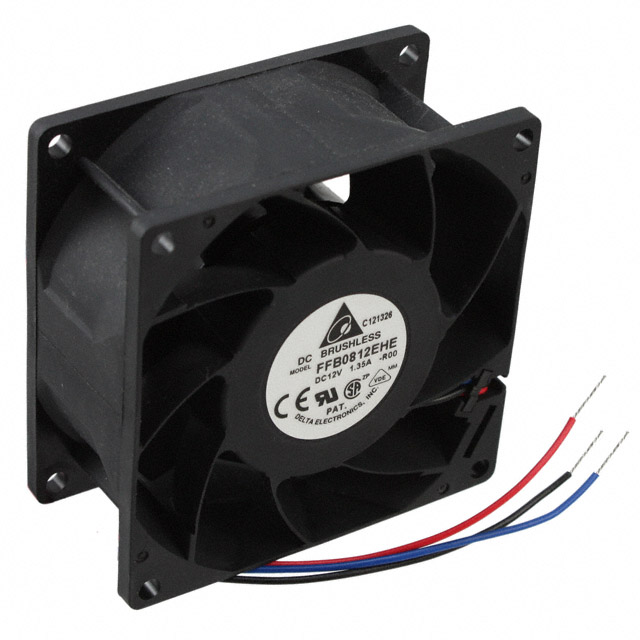

FFB0812EHE-R00
ActiveDelta Electronics
FAN AXIAL 80X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FFB0812EHE-R00
ActiveDelta Electronics
FAN AXIAL 80X38MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFB0812EHE-R00 |
|---|---|
| Air Flow | 80.2 CFM |
| Air Flow | 2.25 mł/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 900 mA |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 52.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 10.8 W |
| RPM | 5700 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 170.1 g |
| Weight | 0.375 lb |
| Width [y] | 38 mm |
FFB0812 Series
| Part | Features | Current Rating (Amps) | Fan Type | Material - Frame | Width [y] | Lifetime @ Temp. | Bearing Type | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Power (Watts) | Noise | Air Flow | Air Flow | Voltage - Rated | Approval Agency | Material - Blade | Termination | Voltage Range [Min] | Voltage Range [Max] | RPM | Weight | Weight | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | Locked Rotor Sensor | 900 mA | Tubeaxial | Plastic | 38 mm | 70000 Hrs | Ball | 80 mm | 80 mm | 70 °C | 70 °C | -10 °C | -10 °C | 10.8 W | 52.5 dB(A) | 80.2 CFM | 2.25 mł/min | 12 VDC | CE CSA UL VDE | Plastic | 3 Wire Leads | 7 V | 13.8 VDC | 5700 RPM | 170.1 g | 0.375 lb | ||
Delta Electronics | 0.5 A | Tubeaxial | Plastic | 25.4 mm | 70000 Hrs | Ball | 80 mm | 80 mm | 60 °C | 60 °C | -10 °C | -10 °C | 6 W | 48.6 dB(A) | 67 CFM | 1.88 m³/min | 12 VDC | CE CSA UL VDE | Plastic | 2 Wire Leads | 4 VDC | 13.2 VDC | 4500 RPM | 114.76 g | 0.253 lb | 0.392 in H2O | 97.6 Pa | |
Delta Electronics | Locked Rotor Sensor | Tubeaxial | Plastic | 25.4 mm | Ball | 80 mm | 80 mm | 6 W | 12 VDC | Plastic | 3 Wire Leads | 114.76 g | 0.253 lb | |||||||||||||||
Delta Electronics | Locked Rotor Protection Speed Sensor (Tach) | 0.5 A | Tubeaxial | Plastic | 25.4 mm | 70000 Hrs | Ball | 80 mm | 80 mm | 60 °C | 60 °C | -10 °C | -10 °C | 6 W | 48.6 dB(A) | 67 CFM | 1.88 m³/min | 12 VDC | CE CSA UL VDE | Plastic | 3 Wire Leads | 4 VDC | 13.2 VDC | 4500 RPM | 114.76 g | 0.253 lb | 0.392 in H2O | 97.6 Pa |
Delta Electronics | 580 mA | Tubeaxial | Plastic | 38 mm | 70000 Hrs | Ball | 80 mm | 80 mm | 70 °C | 70 °C | -10 °C | -10 °C | 6.96 W | 48.5 dB(A) | 68.5 CFM | 1.92 m³/min | 12 VDC | CE CSA UL VDE | Plastic | 2 Wire Leads | 7 V | 13.8 VDC | 4900 RPM | 170.1 g | 0.375 lb | 0.591 in H2O | 147.2 Pa | |
Delta Electronics | Locked Rotor Protection Speed Sensor (Tach) | 0.34 A | Tubeaxial | Plastic | 25.4 mm | 70000 Hrs | Ball | 80 mm | 80 mm | 60 °C | 60 °C | -10 °C | -10 °C | 45.4 dB(A) | 54.6 CFM | 1.53 mł/min | 12 VDC | CE CSA UL VDE | Plastic | 3 Wire Leads | 7 V | 13.2 VDC | 4000 RPM | 115.21 g | 0.254 lb | 0.291 in H2O | 72.5 Pa | |
Delta Electronics | 0.26 A | Tubeaxial | Plastic | 25.4 mm | 70000 Hrs | Ball | 80 mm | 80 mm | 60 °C | 60 °C | -10 °C | -10 °C | 3.12 W | 41.7 dB(A) | 47.2 CFM | 1.32 m³/min | 12 VDC | CE CSA UL VDE | Plastic | 2 Wire Leads | 7 V | 13.2 VDC | 3500 RPM | 114.76 g | 0.253 lb | 0.229 in H2O | 57 Pa | |
Delta Electronics | Locked Rotor Sensor | 0.5 A | Tubeaxial | Plastic | 25.4 mm | 70000 Hrs | Ball | 80 mm | 80 mm | 60 °C | 60 °C | -10 °C | -10 °C | 6 W | 48.6 dB(A) | 67 CFM | 1.88 m³/min | 12 VDC | CE CSA UL VDE | Plastic | 3 Wire Leads | 4 VDC | 13.2 VDC | 4500 RPM | 114.76 g | 0.253 lb | 0.392 in H2O | 97.6 Pa |
Delta Electronics | 1.5 A | Tubeaxial | Plastic | 38 mm | 50000 Hrs | Ball | 80 mm | 80 mm | 70 °C | 70 °C | -10 °C | -10 °C | 18 W | 62.2 dB(A) | 102 CFM | 2.86 m³/min | 12 VDC | CE CSA UL VDE | Plastic | 2 Wire Leads | 7 V | 13.8 VDC | 7500 RPM | 170.1 g | 0.375 lb | 1.233 in H2O | 307.1 Pa | |
Delta Electronics | Locked Rotor Protection Speed Sensor (Tach) | 580 mA | Tubeaxial | Plastic | 38 mm | 70000 Hrs | Ball | 80 mm | 80 mm | 70 °C | 70 °C | -10 °C | -10 °C | 6.96 W | 48.5 dB(A) | 68.5 CFM | 1.92 m³/min | 12 VDC | CE CSA UL VDE | Plastic | 3 Wire Leads | 7 V | 13.8 VDC | 4900 RPM | 170.1 g | 0.375 lb | 0.591 in H2O | 147.2 Pa |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 180 | $ 13.38 | |
Description
General part information
FFB0812 Series
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 80.2 CFM (2.25m³/min) 3 Wire Leads
