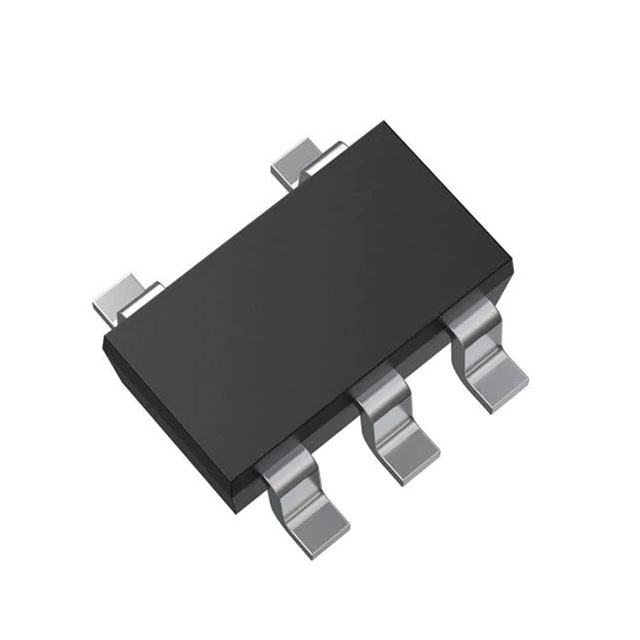

TC75S103F,LF(CT
ActiveToshiba Semiconductor and Storage
IC CMOS 1 CIRCUIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC75S103F,LF(CT
ActiveToshiba Semiconductor and Storage
IC CMOS 1 CIRCUIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC75S103F,LF(CT |
|---|---|
| Amplifier Type | CMOS |
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 25 mA |
| Current - Supply | 100 µA |
| Gain Bandwidth Product | 300 kHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail |
| Voltage - Input Offset | 1.5 mV |
| Voltage - Supply Span (Max) [Max] | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.20 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.33 | ||
| 10 | $ 0.23 | |||
| 25 | $ 0.20 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.13 | |||
| 21000 | $ 0.13 | |||
| 30000 | $ 0.13 | |||
| 75000 | $ 0.13 | |||
Description
General part information
TC75S103 Series
CMOS Amplifier 1 Circuit Rail-to-Rail
