TT820N16KOFHPSA1

Active

Infineon Technologies

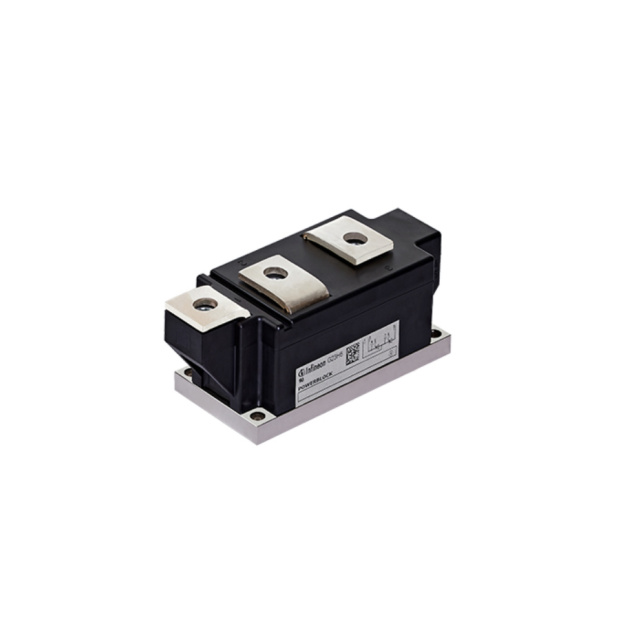

THYRISTOR/THYRISTOR 60 MM PRIME BLOCK 1600 V 820 A MODULE IN PRESSURE CONTACT TECHNOLOGY

Deep-Dive with AI

Search across all available documentation for this part.

TT820N16KOFHPSA1

Active

Infineon Technologies

THYRISTOR/THYRISTOR 60 MM PRIME BLOCK 1600 V 820 A MODULE IN PRESSURE CONTACT TECHNOLOGY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TT820N16KOFHPSA1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	24800 A
Current - On State (It (AV)) (Max) [Max]	820 A
Current - On State (It (RMS)) (Max)	1050 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature	135 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.6 kV

TT820N16 Series

Part	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature	Structure	Current - On State (It (RMS)) (Max)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Package / Case	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Number of SCRs, Diodes	Current - Hold (Ih) (Max) [Max]
Infineon Technologies TT820N16KOFHPSA1	250 mA	135 °C	Series Connection - All SCRs	1050 A	2 V	Module	1.6 kV	820 A	Chassis Mount	24800 A	2 SCRs	300 mA
Infineon Technologies TT820N16KOFXPSA1	250 mA	135 °C	Series Connection - All SCRs	1050 A	2 V	Module	1.6 kV	820 A	Chassis Mount	24800 A	2 SCRs	300 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 357.32
		10	$ 343.88
		26	$ 333.14
Newark	Each	1	$ 371.46
		6	$ 364.55
		10	$ 357.64
		26	$ 346.46

Description

General part information

TT820N16 Series

Thyristor/Thyristor 60 mmPrime Block1600 V, 820 A module for phase control inpressure contact technology. TT820N16KOF offers highest current density and highest surge current in standard 60 mm housing. Also available with preapplied Thermal Interface Material:TT820N16KOF TIM
