AM-8804CAR-DGK-T
ActivePanasonic Industrial Automation Sales

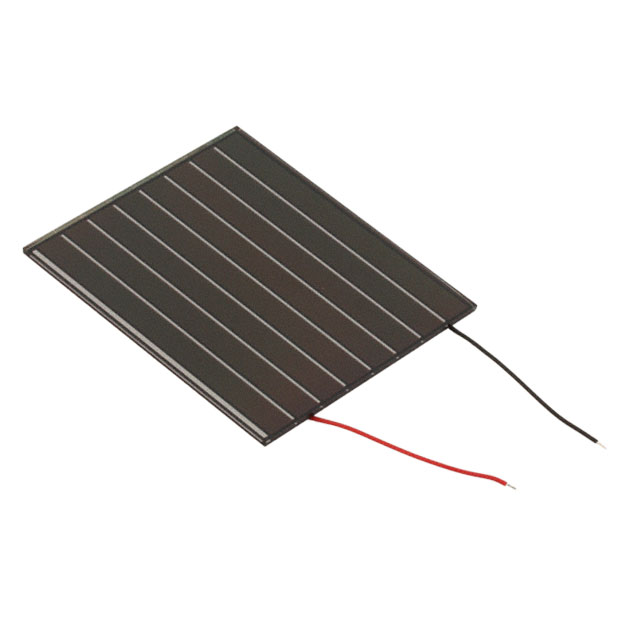

AMORPHOUS SOLAR CELL 150MW 6.8V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM-8804CAR-DGK-T
ActivePanasonic Industrial Automation Sales
AMORPHOUS SOLAR CELL 150MW 6.8V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM-8804CAR-DGK-T |
|---|---|
| Current @ Pmpp | 33.3 mA |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 150 mW |
| Size / Dimension [x] | 2.169 in |
| Size / Dimension [x] | 55.1 mm |
| Size / Dimension [y] | 1.894 in |
| Size / Dimension [y] | 48.1 mm |
| Size / Dimension [z] | 2 mm |
| Size / Dimension [z] | 0.079 " |
| Type | Amorphous |
| Voltage - Open Circuit | 6.8 V |
| Voltage @ Pmpp | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1000 | $ 8.96 | |
Description
General part information
AM-8804CAR Series
Amorphous Solar Cell 150 mW 6.8 V
Documents
Technical documentation and resources
