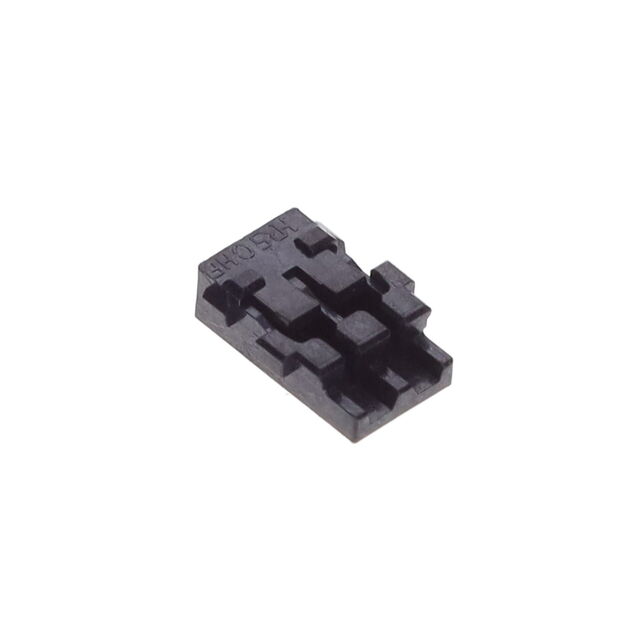

DF57AH-2S-1.2C(15)

Active

Hirose Electric USA, Inc.

CONN RCPT 2POS 1.2MM CRIMP

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 2POS 1.2MM CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Positions	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Color	Fastening Type	Mounting Type	Contact Termination	Insulation Material	Pitch [x]	Pitch [x]	Contact Type	Note
Hirose Electric USA, Inc. DF57AH-2S-1.2C	Socket	2	1	-35 °C	85 °C	Black	Swing Lock	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)	1.2 mm	0.047 in	Female Socket
Hirose Electric USA, Inc. DF57AH-2S-1.2C(15)	Socket	2	1	-35 °C	85 °C	Black	Swing Lock	Free Hanging (In-Line)	Crimp	Liquid Crystal Polymer (LCP)	1.2 mm	0.047 in	Female Socket
Hirose Electric USA, Inc. DF57AH-5S-1.2C	Receptacle		1	-35 °C	85 °C	White	Swing Lock	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)	1.2 mm	0.047 in	Female Socket	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Socket Black 0.047" (1.20mm)

Technical documentation and resources
