A79025-001

Active

Omnetics

36 POSITION DUAL ROW FEMALE NANO

Search across all available documentation for this part.

Active

Omnetics

36 POSITION DUAL ROW FEMALE NANO

Technical Specifications

Parameters and characteristics for this part

Specification	A79025-001

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Natural
Insulation Height	0.07 in
Insulation Height	1.78 mm
Insulation Material	Thermoplastic
Mounting Type	Surface Mount, Right Angle
Number of Positions	40
Number of Positions Loaded	36
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.025 in
Pitch - Mating	0.64 mm
Row Spacing - Mating	0.03 in
Row Spacing - Mating	0.76 mm
Termination	Solder

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Type	Connector Type	Insulation Color	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Insulation Height	Insulation Height	Number of Positions	Number of Rows	Contact Shape	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Features	Insulation Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Omnetics A79025-001	Surface Mount Right Angle	0.025 in	0.64 mm	Female Socket	Receptacle	Natural	Solder	0.03 in	0.76 mm	Copper Alloy	0.07 in	1.78 mm	40	2	Circular	36	-55 °C	125 °C	Gold	Guide Pin	Thermoplastic	Push-Pull	1.27 µm	50 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

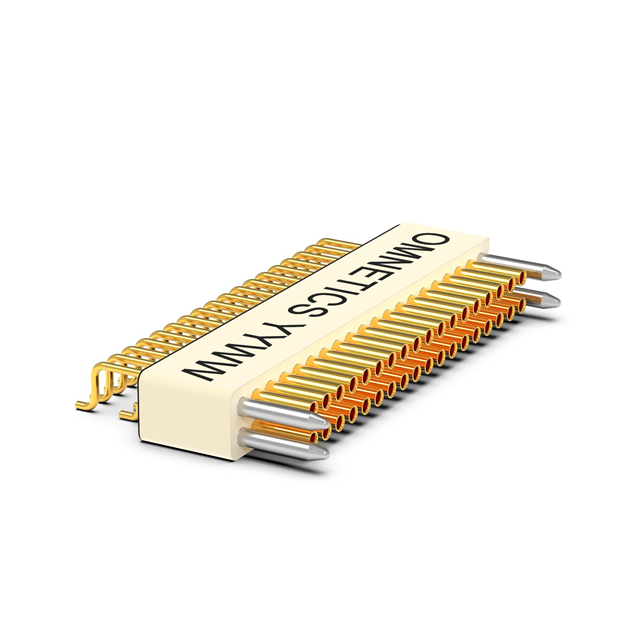

40 Position Receptacle Connector 0.025" (0.64mm) Surface Mount, Right Angle Gold
