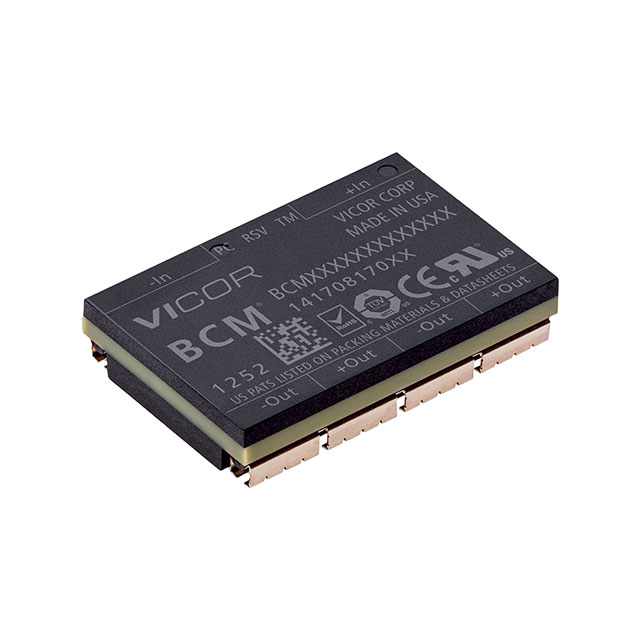

BCM48BT240T300A00

Active

Vicor Corporation

DC DC CONVERTER 24V 300W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BCM48BT240T300A00

Active

Vicor Corporation

DC DC CONVERTER 24V 300W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BCM48BT240T300A00

Applications	ITE (Commercial)
Current - Output (Max) [Max]	12 A
Efficiency	94 %
Features	OCP, UVLO, OTP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power (Watts)	300 W
Size / Dimension [x]	1.28 in
Size / Dimension [x]	32.5 mm
Size / Dimension [y]	22 mm
Size / Dimension [y]	0.87 in
Size / Dimension [z]	6.7 mm
Size / Dimension [z]	0.26 "
Type	Bus Converter Module
Voltage - Input (Min) [Min]	38 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	24 V

BCM48 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Type	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Features	Mounting Type	Efficiency	Applications	Voltage - Isolation	Power (Watts)	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency
Vicor Corporation BCM48BT240T300A00	125 °C	-40 °C	12 A	Bus Converter Module	38 V	Module	1	OCP OTP SCP UVLO	Through Hole	94 %	ITE (Commercial)	2250 VDC	300 W	24 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm
Vicor Corporation BCM48BT160T240A00	125 °C	-40 °C	15 A	Bus Converter Module	38 V	Module	1	OCP OTP SCP UVLO	Through Hole	94 %	ITE (Commercial)	2250 VDC	240 W	16 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm
Vicor Corporation BCM48BF480T300A00	125 °C	-40 °C	6.25 A	Bus Converter Module	38 V	Module	1	OCP OTP SCP UVLO	Surface Mount	96 %	ITE (Commercial)	2250 VDC	300 W	48 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	CE cURus TUV
Vicor Corporation BCM48BT096T240A00	125 °C	-40 °C	30 A	Bus Converter Module	38 V	Module	1	OCP OTP SCP UVLO	Through Hole	95 %	ITE (Commercial)	2250 VDC	240 W	9.6 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm
Vicor Corporation BCM48BT240M300A00	125 °C	-55 °C	12 A	Bus Converter Module	38 V	Module	1	OCP OTP SCP UVLO	Through Hole	94 %	ITE (Commercial)	2250 VDC	300 W	24 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm
Vicor Corporation BCM48BT480M300A00	125 °C	-55 °C	6.25 A	Bus Converter Module	38 V	Module	1	OCP OTP SCP UVLO	Through Hole	96 %	ITE (Commercial)	2250 VDC	300 W	48 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	CE cURus TUV
Vicor Corporation BCM48BF120T300A00	125 °C	-40 °C	30 A	Bus Converter Module	38 V	Module	1	Remote On/Off UVLO	Surface Mount	96 %	ITE (Commercial)	2250 VDC	300 W	12 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm
Vicor Corporation BCM48BF040T200B00	125 °C	-40 °C	53 A	Bus Converter Module	38 V	Module	1	OCP OTP OVP Remote On/Off SCP UVLO	Surface Mount	94.1 %	ITE (Commercial)	2250 VDC	200 W	4 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm
Vicor Corporation BCM48BF240M300A00	125 °C	-55 °C	12 A	Bus Converter Module	38 V	Module	1	OCP OTP SCP UVLO	Surface Mount	94 %	ITE (Commercial)	2250 VDC	300 W	24 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm
Vicor Corporation BCM48BT040T200B00	125 °C	-40 °C	53 A	Bus Converter Module	38 V	Module	1	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	94.1 %	ITE (Commercial)	2250 VDC	200 W	4 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 104.04
		10	$ 82.64
		25	$ 75.41
		50	$ 73.85

Description

General part information

BCM48 Series

Bus Converter Module DC DC Converter 1 Output 24V 12A 38V - 55V Input

Documents

Technical documentation and resources
