3240845

Active

Phoenix Contact

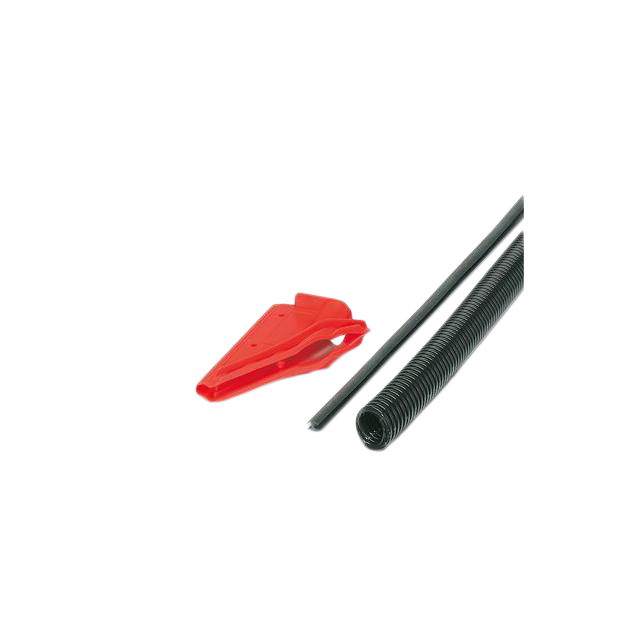

SLIT WRAP 0.65" BLACK

Search across all available documentation for this part.

Active

Phoenix Contact

SLIT WRAP 0.65" BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	3240845

Color	Black
Diameter - Inside, Non-Expanded [diameter]	16.5 mm
Diameter - Inside, Non-Expanded [diameter]	0.65 in
Diameter - Outside, Non-Expanded [diameter]	21.2 mm
Diameter - Outside, Non-Expanded [diameter]	0.835 "
Environment Protection	UV Resistant
Features	Vibration Resistant, Acid Resistant, Solvent Resistant
Heat Protection	Flame Retardant
Liquid Protection	Oil Resistant, Gasoline Resistant
Material	Nylon, Polyamide (PA), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Type	Slit Wrap
Type Attributes	Slit Harness

Part	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Heat Protection	Material	Material Flammability Rating	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Liquid Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Environment Protection	Type
Phoenix Contact 3240848	42.5 mm	1.673 in	Slit Harness	Flame Retardant	Halogen Free Nylon Polyamide (PA)	UL94 V-0	Acid Resistant Solvent Resistant Vibration Resistant	1.417 in	36 mm	Gasoline Resistant Oil Resistant	Black	-40 °C	105 ░C	UV Resistant	Slit Wrap
Phoenix Contact 3240845	21.2 mm	0.835 "	Slit Harness	Flame Retardant	Halogen Free Nylon Polyamide (PA)	UL94 V-0	Acid Resistant Solvent Resistant Vibration Resistant	0.65 in	16.5 mm	Gasoline Resistant Oil Resistant	Black	-40 °C	105 ░C	UV Resistant	Slit Wrap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 7.36

General part information

Slit Wrap 0.835" (21.20mm) X Black

Technical documentation and resources
