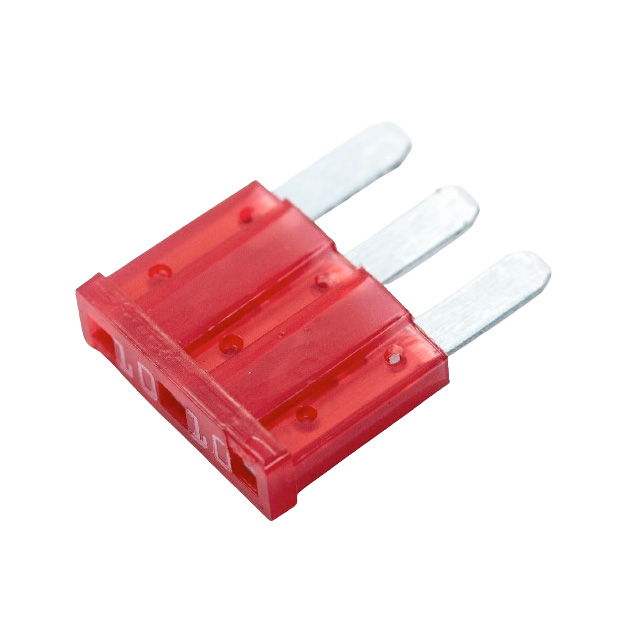

ANK-10A

Active

OptiFuse

FUSE: FUSE; 10A; 32VDC; AUTOMOTIVE; 14.3MM; MICRO3

Search across all available documentation for this part.

Active

OptiFuse

FUSE: FUSE; 10A; 32VDC; AUTOMOTIVE; 14.3MM; MICRO3

Technical Specifications

Parameters and characteristics for this part

Specification	ANK-10A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Red
Current Rating (Amps)	10 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Micro
Response Time	Fast Blow
Size / Dimension [x]	0.563 in
Size / Dimension [x]	14.3 mm
Size / Dimension [y]	0.165 "
Size / Dimension [y]	4.2 mm
Size / Dimension [z]	10.6 mm
Size / Dimension [z]	0.417 "
Voltage Rating - DC	32 V

Part	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Fuse Type	Breaking Capacity @ Rated Voltage	Color	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Approval Agency	Response Time
OptiFuse ANK-10A	Blade Micro	10.6 mm	0.165 "	0.563 in	0.417 "	14.3 mm	4.2 mm	Automotive	1 kA	Red	10 A	32 V	Requires Holder	ISO SAE	Fast Blow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.09

General part information

10 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro
