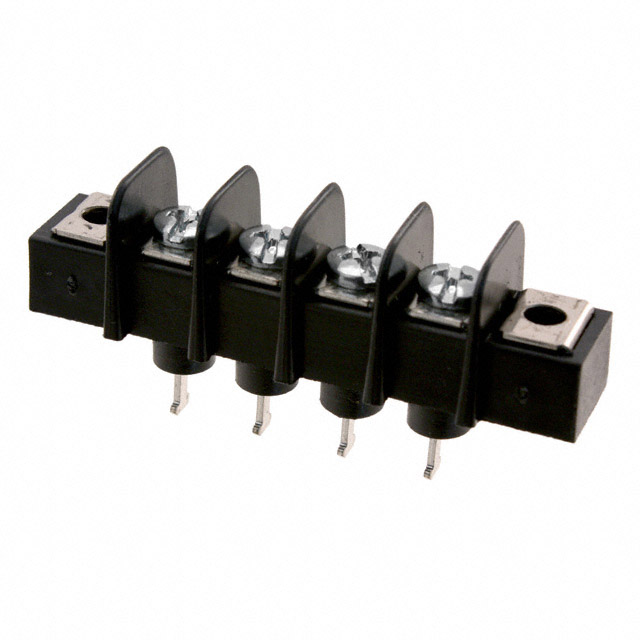

0387203204

Active

Molex

CONN BARRIER STRIP 4CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0387203204

Active

Molex

CONN BARRIER STRIP 4CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0387203204

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated
Color	Black
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Thermoplastic
Mounting Type	Panel, Chassis
Number of Circuits	4
Number of Rows	1
Number of Wire Entries	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc, Clear Chromate
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

038720 Series

...

Part	Current Rating (Amps)	Number of Wire Entries	Barrier Type	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Terminal Screw Finish	Wire Gauge [Min]	Wire Gauge [Max]	Voltage Rating	Mounting Type	Number of Rows	Bottom Termination	Top Termination	Number of Circuits	Terminal Block Type	Color	Terminal Screw Material	Pitch [x]	Pitch [x]	Material Flammability Rating	Features	Number of Circuits [custom]
Molex 0387200606	15 A	6	2 Wall (Dual)	100 °C	-40 °C	Thermoplastic	Chromate Zinc	14 AWG	22 AWG	300 VDC	Chassis Panel	1	Closed	Screws	6	Barrier Block	Black	Steel	9.53 mm	0.375 in	UL94 V-0
Molex 0387203508	15 A	8	2 Wall (Dual)	100 °C	-40 °C	Thermoplastic	Nickel	14 AWG	22 AWG	300 VDC	Chassis Panel	1	Solder Turret Insulated	Screws		Barrier Block	Black	Brass	9.53 mm	0.375 in	UL94 V-0	Flange	8
Molex 0387208103	15 A	3	2 Wall (Dual)	100 °C	-40 °C	Thermoplastic	Clear Chromate Zinc	14 AWG	22 AWG	300 VDC	Through Hole	1	PC Pin	Screws	3	Barrier Block	Black	Steel	9.53 mm	0.375 in	UL94 V-0
Molex 0387203204	15 A	4	2 Wall (Dual)	100 °C	-40 °C	Thermoplastic	Clear Chromate Zinc	14 AWG	22 AWG	300 VDC	Chassis Panel	1	Solder Turret Insulated	Screws	4	Barrier Block	Black	Steel	9.53 mm	0.375 in		Flange
Molex 0387206508	15 A	8	2 Wall (Dual)	100 °C	-40 °C	Thermoplastic	Chromate Zinc	14 AWG	22 AWG	300 VDC	Through Hole	1	PC Pin	Screws		Barrier Block	Black	Steel	9.53 mm	0.375 in	UL94 V-0	Flange	8
Molex 0387205320	20 A	20	2 Wall (Dual)	100 °C	-40 °C	Thermoplastic	Trivalent Zinc	12 AWG	22 AWG	300 VDC	Chassis Panel	1	PC Pin Insulated	Screws with Captive Plate	20	Barrier Block	Black	Steel	9.53 mm	0.375 in	UL94 V-0	Flange
Molex 0387209205	15 A	5	2 Wall (Dual)	100 °C	-40 °C	Thermoplastic	Chromate Zinc	14 AWG	22 AWG	300 VDC	Chassis Panel	1	Solder Turret	Screws	5	Barrier Block	Black	Steel	9.53 mm	0.375 in	UL94 V-0	Flange
Molex 0387209226	15 A	26	2 Wall (Dual)	100 °C	-40 °C	Thermoplastic	Chromate Zinc	14 AWG	22 AWG	300 VDC	Chassis Panel	1	Solder Turret	Screws	26	Barrier Block	Black	Steel	9.53 mm	0.375 in	UL94 V-0	Flange
Molex 0387206414	15 A	14	2 Wall (Dual)	100 °C	-40 °C	Thermoplastic	Chromate Zinc	14 AWG	22 AWG	300 VDC	Through Hole	1	PC Pin	Screws	14	Barrier Block	Black	Steel	9.53 mm	0.375 in	UL94 V-0	Flange
Molex 0387203318	15 A	18	2 Wall (Dual)	100 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Clear Chromate Zinc	14 AWG	22 AWG	300 VDC	Chassis Panel	1	Solder Turret Insulated	Screws	18	Barrier Block	Black	Steel	9.53 mm	0.375 in	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.13
		10	$ 3.91
		25	$ 3.66
		50	$ 3.25
		100	$ 3.18
		260	$ 2.93
		520	$ 2.65
		1040	$ 2.35

Description

General part information

038720 Series

4 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
