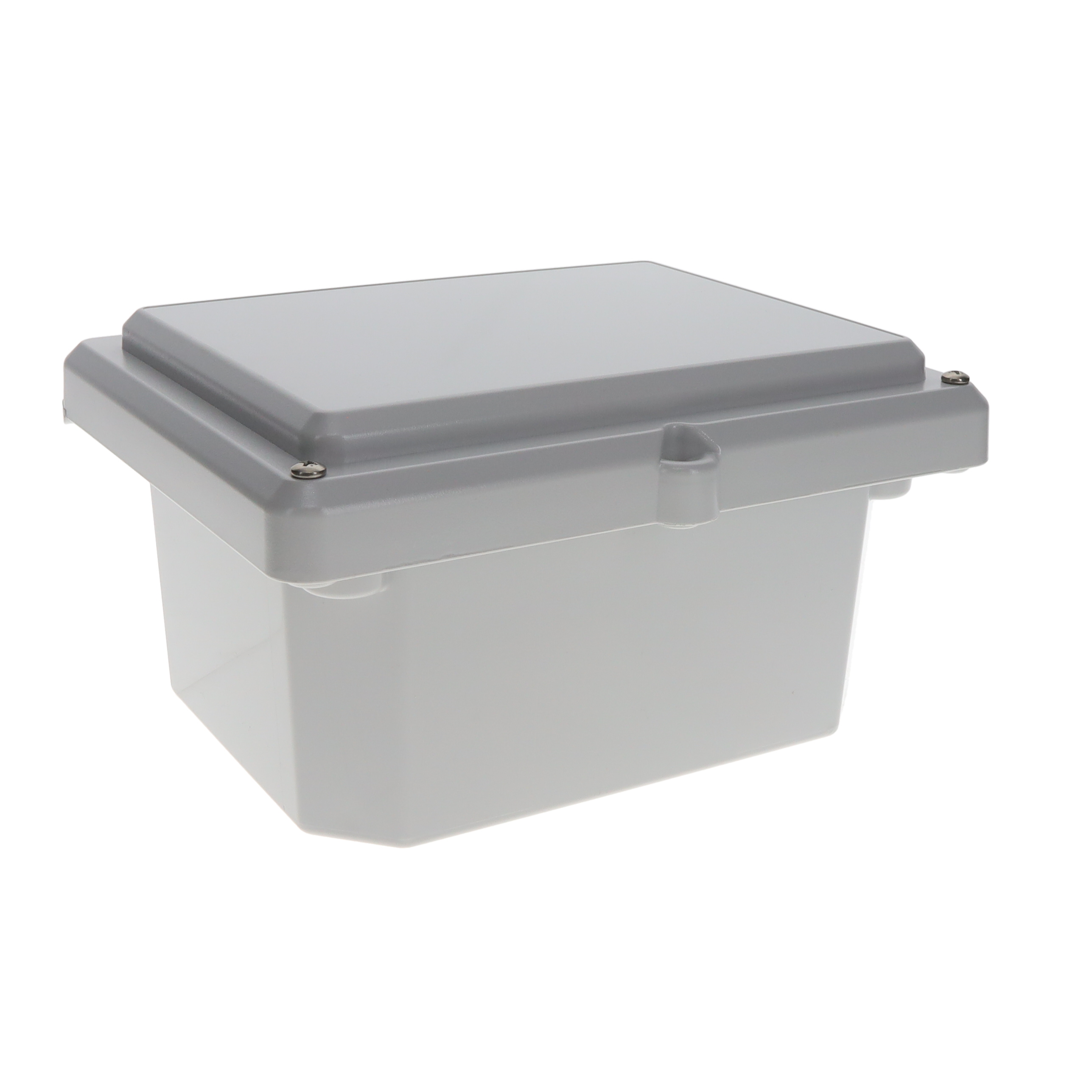

I152HSGG

Active

Serpac

ENCLOSURE ALUM 9.71"L X 8.23"W

Search across all available documentation for this part.

Active

Serpac

ENCLOSURE ALUM 9.71"L X 8.23"W

Technical Specifications

Parameters and characteristics for this part

Specification	I152HSGG

Area (L x W) [custom]	1863 cm˛
Area (L x W) [custom]	289 in˛
Color	Gray
Container Type	Enclosure
Design	Cover Included
Height [z]	138.68 mm
Height [z]	5.46 in
Material	Metal, Aluminum
Material Flammability Rating	UL94 V-2
Ratings	IP67, NEMA 4
Size / Dimension [x]	9.71 in
Size / Dimension [x]	246.63 mm
Size / Dimension [y]	8.23 in
Size / Dimension [y]	209.04 mm

Part	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Height [z]	Height [z]	Material	Container Type	Ratings	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Area (L x W)	Area (L x W)
Serpac I152HSGG	Cover Included	9.71 in	8.23 in	209.04 mm	246.63 mm	Gray	138.68 mm	5.46 in	Aluminum Metal	Enclosure	IP67 NEMA 4	1863 cm˛	289 in˛	UL94 V-2
Serpac I152HSCG	Cover Included	9.71 in	8.23 in	209.04 mm	246.63 mm	Clear Gray	138.68 mm	5.46 in	Aluminum Metal	Enclosure	IP67 NEMA 4			UL94 V-2	289 in²	1863 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosure Metal, Aluminum Gray Cover Included 9.710" L x 8.230" W (246.63mm x 209.04mm) X 5.460" (138.68mm)
