YB01WKW01-2CF24-JB

Active

NKK Switches

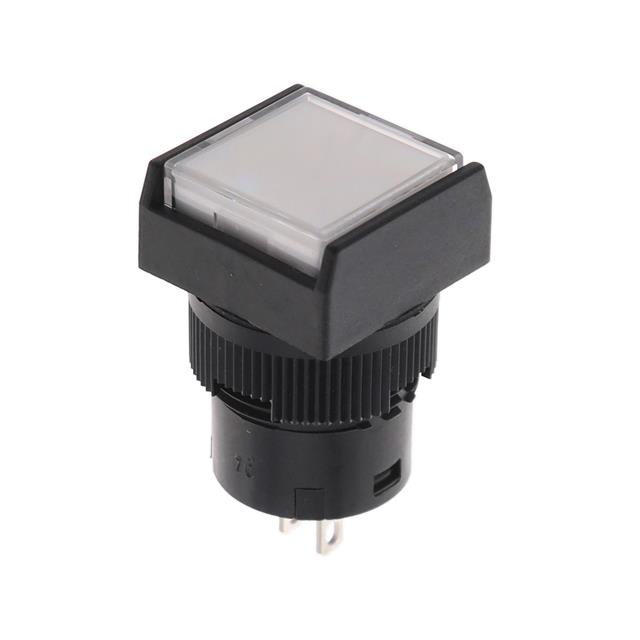

INDICATOR PB 24V R/G ILL CLR CAP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB01WKW01-2CF24-JB

Active

NKK Switches

INDICATOR PB 24V R/G ILL CLR CAP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB01WKW01-2CF24-JB

Current	10 mA, 10 mA
Lamp Color	Green, Red
Lens Color	White
Lens Size	15 mm
Lens Style	Square with Flat Top
Lens Transparency	Diffused
Panel Cutout Dimensions	0.63 in
Panel Cutout Dimensions	16 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Solder Lug, Quick Connect
Termination Style	2.8 mm
Termination Style	0.11 in
Type	LED
Voltage	24 V, 24 V

YB01 Series

Part	Lens Transparency	Lens Style	Voltage	Lens Color	Current	Lens Size	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Panel Cutout Shape	Termination Style	Termination Style	Termination Style	Ratings
NKK Switches YB01WKW01-12-BB	Diffused	Square with Flat Top	12 V	White	60 mA	15 mm	Incandescent	0.63 in	16 mm	White	Round	Quick Connect Solder Lug	2.8 mm	0.11 in
NKK Switches YB01KW01-12-JF	Diffused	Square with Flat Top	12 V	Green	60 mA	15 mm	Incandescent	0.63 in	16 mm	Green	Round	Quick Connect Solder Lug	2.8 mm	0.11 in	AC
NKK Switches YB01KW01-6F-JB	Diffused	Square with Flat Top	3.3 V	White		15 mm	LED	0.63 in	16 mm	Green	Round	Quick Connect Solder Lug	2.8 mm	0.11 in
NKK Switches YB01WKW01-5D-JD	Diffused	Square with Flat Top	2 V	Amber	40 mA	15 mm	LED	0.63 in	16 mm	Amber	Round	Quick Connect Solder Lug	2.8 mm	0.11 in
NKK Switches YB01WKW01-12-CB	Diffused	Square with Flat Top	12 V	Red		15 mm	Incandescent	0.63 in	16 mm	Red	Round	Quick Connect Solder Lug	2.8 mm	0.11 in	AC
NKK Switches YB01WKW01-5F-JF	Clear	Square with Flat Top	2 V	Green	40 mA	15 mm	LED	0.63 in	16 mm	Green	Round	Quick Connect Solder Lug	2.8 mm	0.11 in
NKK Switches YB01KW01-5C-JB	Diffused	Square with Flat Top	1.9 V	White	40 mA	15 mm	LED	0.63 in	16 mm	Red	Round	Quick Connect Solder Lug	2.8 mm	0.11 in
NKK Switches YB01WKW01-6G-JB	Diffused	Square with Flat Top	3.3 V	White	30 mA	15 mm	LED	0.63 in	16 mm	Blue	Round	Quick Connect Solder Lug	2.8 mm	0.11 in
NKK Switches YB01KW01-5D12-JB	Clear	Square with Flat Top	12 V	White		15 mm	LED	0.63 in	16 mm	Amber	Round	Quick Connect Solder Lug	2.8 mm	0.11 in
NKK Switches YB01WKW01-2CF24-JB	Diffused	Square with Flat Top	24 V 24 V	White	10 mA 10 mA	15 mm	LED	0.63 in	16 mm	Green Red	Round	Quick Connect Solder Lug	2.8 mm	0.11 in	AC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.36
Newark	Each	1	$ 44.37
		5	$ 42.14
		10	$ 39.06
		25	$ 35.63
		50	$ 30.84
		100	$ 28.78
		250	$ 26.21

Description

General part information

YB01 Series

LED Panel Indicator Green, Red Diffused 24V Green, 24V Red 10mA Green, 10mA Red Quick Connect, Solder Lug - 0.110" (2.8mm)
