Technical Specifications
Parameters and characteristics for this part
| Specification | TPI 65-153A-JP |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 1.24 A |
| Efficiency | 93 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 66 W |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [x] | 3 " |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 0.94 in |
| Size / Dimension [z] | 23.9 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 53 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

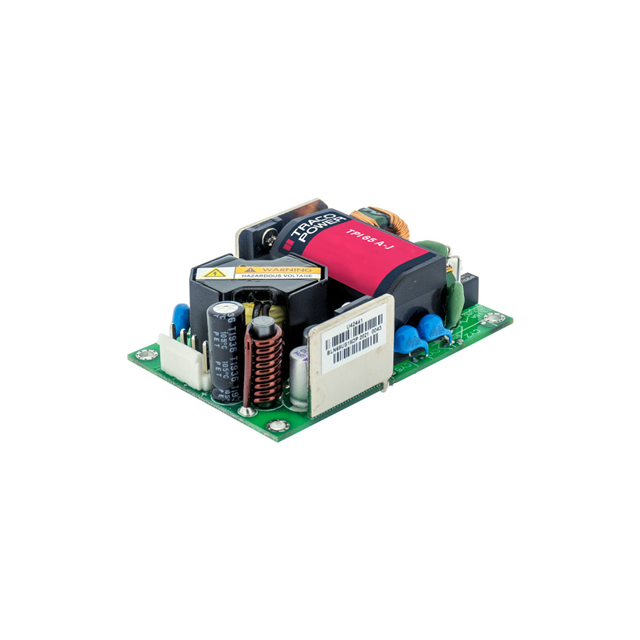

TPI 65A-J Series
Switching Power Supplies 65W 48V 1360mA Open 3x2
