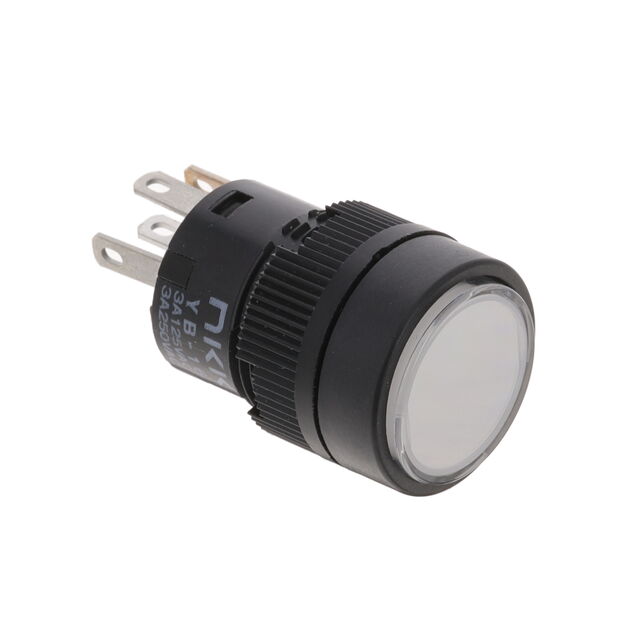

YB16CKW01-2CF05-JB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB16CKW01-2CF05-JB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	5 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB16CK Series

Part	Illumination Type, Color	Color - Actuator/Cap	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Electrical Life	Illumination Voltage (Nominal)	Termination Style	Termination Style	Termination Style	Type	Circuit	Current Rating (Amps)	Mechanical Life	Actuator Marking	Switch Function	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type
NKK Switches YB16CKW01-2CF05-JB	Green/Red LED	Clear	125 V	Button Round	30 V	100000 Cycles	5 VDC	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	SPDT	3 A	200000 Cycles	No Marking	On-On	16 mm	50 °C	-25 °C	Tactile Feedback	Panel Mount Front
NKK Switches YB16CKW01-5C-JC	LED Red	Clear (Red Filter/Diffuser)	125 V	Button Round	30 V	100000 Cycles	1.9 VDC	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	SPDT	3 A	200000 Cycles	No Marking	On-On	16 mm	50 °C	-25 °C	Tactile Feedback	Panel Mount Front
NKK Switches YB16CKW01-CB		Red	125 V	Button Round	30 V	100000 Cycles		0.11 in	Quick Connect Solder	2.8 mm	Standard	SPDT	3 A	200000 Cycles	No Marking	On-On	16 mm	70 °C	-25 °C	Tactile Feedback	Panel Mount Front
NKK Switches YB16CKW01-5F-JB	Green LED	Clear	125 V	Button Round	30 V	100000 Cycles	2.2 VDC	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	SPDT	3 A	200000 Cycles	No Marking	On-On	16 mm	50 °C	-25 °C	Tactile Feedback	Panel Mount Front
NKK Switches YB16CKG01-5F24-JB	Green LED	Clear	28 V	Button Round	28 V	100000 Cycles	24 V	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	SPDT	0.4 VA	200000 Cycles	No Marking	On-On	16 mm	50 °C	-25 °C	Tactile Feedback	Panel Mount Front
NKK Switches YB16CKW01-6G-JB	Blue LED	Clear	125 V	Button Round	30 V	100000 Cycles	3.6 VDC	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	SPDT	3 A	200000 Cycles	No Marking	On-On	16 mm	50 °C	-25 °C	Tactile Feedback	Panel Mount Front
NKK Switches YB16CKG01-5F12-JB	Green LED	Clear	28 V	Button Round	28 V	100000 Cycles	12 VDC	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	SPDT	0.4 VA	200000 Cycles	No Marking	On-On	16 mm	50 °C	-25 °C	Tactile Feedback	Panel Mount Front
NKK Switches YB16CKG01-5F-JB	Green LED	Clear	28 V	Button Round	28 V	100000 Cycles	2 VDC	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	SPDT	0.4 VA	200000 Cycles		On-On	16 mm	50 °C	-25 °C		Panel Mount Front
NKK Switches YB16CKW01-FB		Green	125 V	Button Round	30 V	100000 Cycles		0.11 in	Quick Connect Solder	2.8 mm	Standard	SPDT	3 A	200000 Cycles	No Marking	On-On	16 mm	70 °C	-25 °C	Tactile Feedback	Panel Mount Front
NKK Switches YB16CKW01-5D12-JD	Amber LED	Clear	125 V	Button Round	30 V	100000 Cycles	12 VDC	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	SPDT	3 A	200000 Cycles	No Marking	On-On	16 mm	50 °C	-25 °C	Tactile Feedback	Panel Mount Front
